5.2.1.4. BAM+BAS Mode

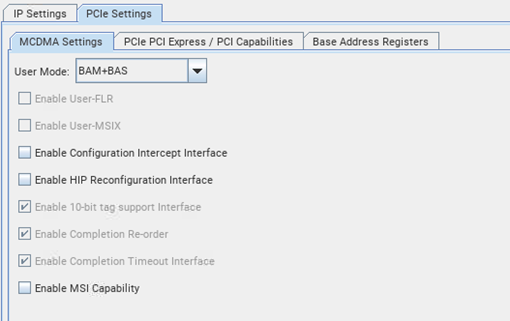

Figure 9. Endpoint BAM+BAS Mode Parameters
Table 41.  Endpoint BAM+BAS Mode Parameters
Parameter Value Default Value Description
Enable Configuration Intercept Interface On / Off Off

Select to enable user configuration intercept interface.
Enable HIP Reconfiguration Interface On / Off Off

Select to enable Hard IP reconfiguration interface.
Enable 10-bit tag support interface On On

Enables 10-bit tag support interface
Enable Completion Re-order On On

Enables completion re-order
Enable Completion Timeout Interface On On

Enables completion timeout interface
Enable MSI Capability On / Off Off

Enables or disables MSI capability

Note: MSI is supported only in BAS and BAM+BAS modes.
