11.7.4. Using the EMIF Debug Toolkit

The main view of the EMIF Debug Toolkit contains the Memory Configuration and Calibration tabs.

Memory Configuration Tab

The Memory Configuration tab shows the IP settings, which you defined when you parameterized the EMIF IP.

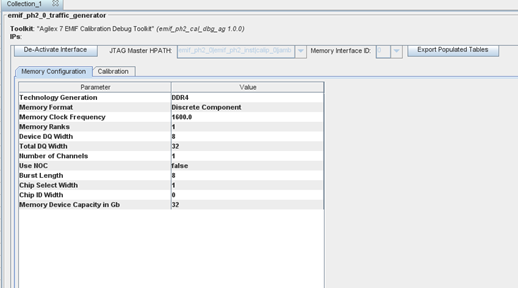

Figure 79. Memory Configuration Tab

Calibration Tab

The Calibration tab allows you to rerun calibration and the traffic generator

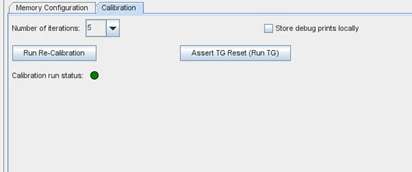

Figure 80. Calibration Tab

Section Content
Rerunning Calibration
Rerunning the Traffic Generator
Saving Debug Print
