1.2.5.1. Test Procedure

After you compile the Triple-Speed Ethernet Intel® FPGA IP design example and configure it on your Intel® Stratix® 10 device, you can use the System Console to program the IP.

Connect TX at terminal PIN_AU4 to RX at terminal PIN_AU10 of Stratix 10 TX Transceiver Signal Integrity Development Kit using the QSFP-DD loopback module.

To turn on the System Console and test the hardware design example, follow these steps:

  1. In the Intel® Quartus® Prime Pro Edition software, select Tools > In-System Source and Probes Editor to open the default source and probe GUI.
  2. Select Device as indicated in Figure 9.
  3. Click File to select the .sof file and click Program Device.
  4. The initial value of source[0] is 0. Click on the value in the Data column to change the value to 1 to release the design from reset mode.
    Figure 9. In-System Sources and Probes Editor
  5. Once the design is out of reset, in the Intel® Quartus® Prime Pro Edition software, select Tools > System Debugging Tools>System Console to launch the system console.
  6. In the Tcl Console pane, type cd hwtest/sc to change directory to <design_example_dir>/hardware_test_design/hwtest/sc/.
  7. Type source hwtest_main.tcl to run the design example in 10 Mbps, 100 Mbps and 1 Gbps Ethernet speed.

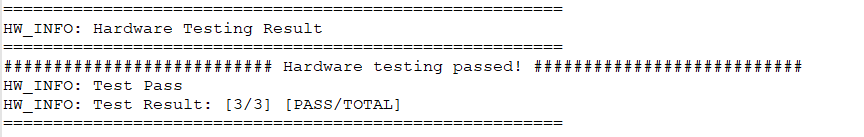

A successful test run displays the following message:
