126.96.36.199. Synchronization and Scheduling of Data with the Channel Signal

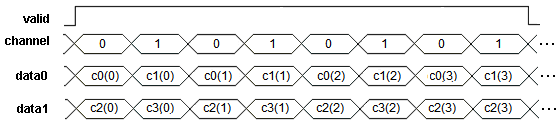

For more than a single data wire, it is not equal to the channel count on data wires, but specifies the synchronous channel data alignment across all the data wires. For example,
For a single wire, the channel signal is the same as a channel count. However, for ChanWireCount > 1, the channel signal specifies the channel data separation per wire, rather than the actual channel number: it counts from 0 to ChanCycleCount –1 rather than 0 to ChanCount –1.
The channel signal remains a single wire, not a wire for each data wire. It counts over 0 to ChanCycleCount –1.
