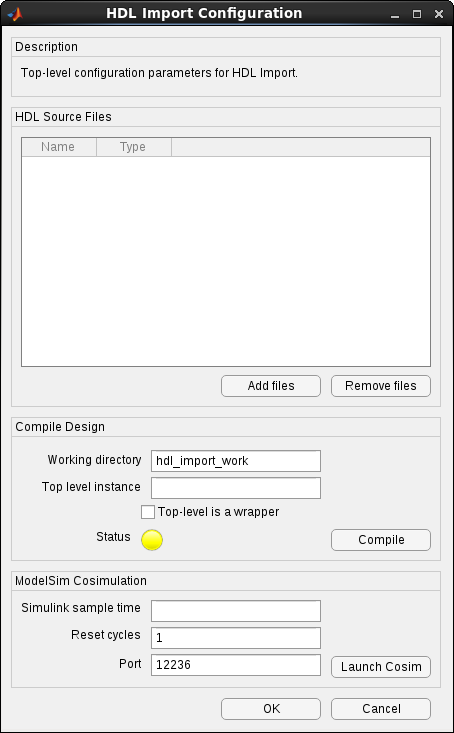

16.2.2. HDL Import Config
|Working Directory||DSP Builder creates this working directory for the ModelSim library and other intermediate files.|
Enter the name of the top-level instance. If that instance is not the HDL you want to import but a wrapper for multiple instances, turn on Top-level is a wrapper.
|Compile||Click to compile imported RTL. Reclick if the imported RTL changes. For the cosimulation, DSP Builder creates a ModelSim library.and performs ModelSim compilation followed by a series of Quartus synthesis compilations, one for each imported instance. The output from the compilations, including any errors, is printed to the MATLAB Command Window
The status light is yellow when the compile status is unknown, red when an error has occurred, and green on success. DSP Builder prints the compilation output to the MATLAB Command Window.
|Simulink sample time||Specify the sample time of the DSP Builder part of your Simulink model.|
|Reset cycles||Allows you to hold your imported HDL in reset for an arbitrary number of cycles before the cosimulation begins.|
|Port||The TCP/IP port number that the cosimulation uses for communication.|
