9.3.1. Board Decoupling Capacitors Guide

In addition to on-package decoupling (OPD) (as land-side capacitor (LSC) and die-side capacitor (DSC)), the Agilex™ 3 device family also offers a bottom side and periphery capacitors (refer to the Agilex™ 3 FPGA Packages Board-Level Decoupling Capacitors Summary section, the bottom side capacitors for each power rail).

Figure 39. Bottom Side Decoupling Capacitors and the Use of PTH ViaThis figure shows an example of decoupling capacitors placed on the bottom side for a PCB without socket and the use of PTH via.
Figure 40. Periphery Decoupling Capacitors and the Use of PTH ViaThis figure shows an example of periphery decoupling capacitors for a PCB without socket and the use of PTH via.

Considering the VPBGA mapping, Altera recommends that you include a power flood on the bottom layer of the board for VCCL.

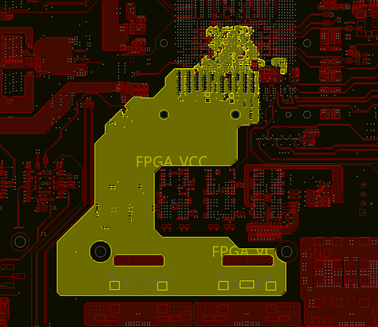

Figure 41. Example of Board Power Flooding This figure shows a good design practice to reduce the loop inductance caused by a shorter path to the FPGA fabric and more effective decoupling solution.
