2.6.2. Instantiating the SLD JTAG Bridge Agent

To generate and instantiate the SLD JTAG Bridge Agent Intel® FPGA IP:
  1. On the IP Catalog (Tools > IP Catalog), type SLD JTAG Bridge Agent.

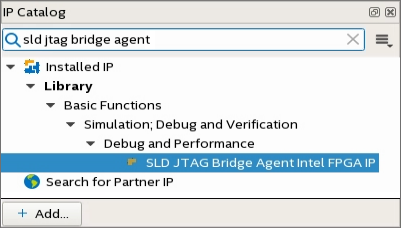

    Figure 7. Find in IP Catalog
  2. Double click SLD JTAG Bridge Agent Intel® FPGA IP .
  3. In the Create IP Variant dialog box, type a file name, and then click Create.

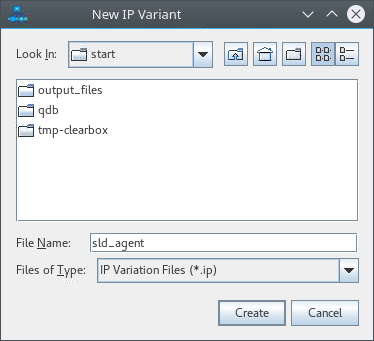

    Figure 8. Create IP Variant Dialog Box
    The IP Parameter Editor Pro window shows the IP parameters. In most cases, you do not need to change the default values.

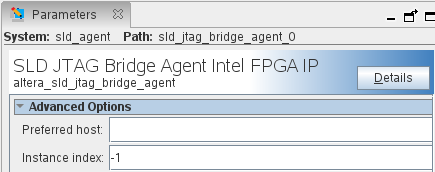

    Figure 9. SLD JTAG Bridge Agent Intel® FPGA IP Parameters
  4. Click Generate HDL.
  5. When the generation completes successfully, click Close.
  6. If you want an instantiation template, click Generate > Show Instantiation Template in the IP Parameter Editor Pro.
