6.4.7. The XCVR #3 Tab

The XCVR3 tab allows you to run ×10 high density loopback test through BullsEye connector.

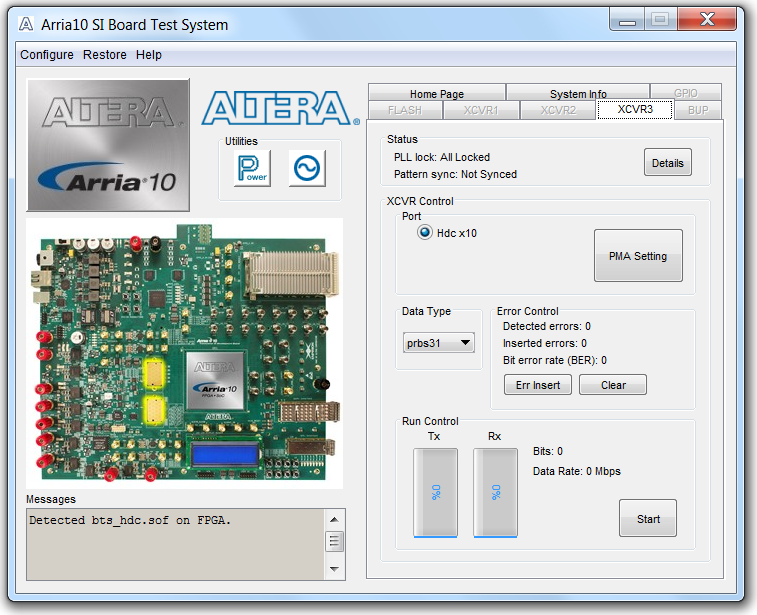

Figure 23. The XCVR3 Tab

The following sections describe the controls on the XCVR3 tab.


Section Content
XCVR3 Tab—Status
XCVR3 Tab—Port
XCVR3 Tab—PMA Setting
XCVR3 Tab—Data Type
XCVR3 Tab—Error Control
XCVR3 Tab—Run Control
