2.5.1. Simulation Results

The simulation below was run with P-Tile MCDMA IP.

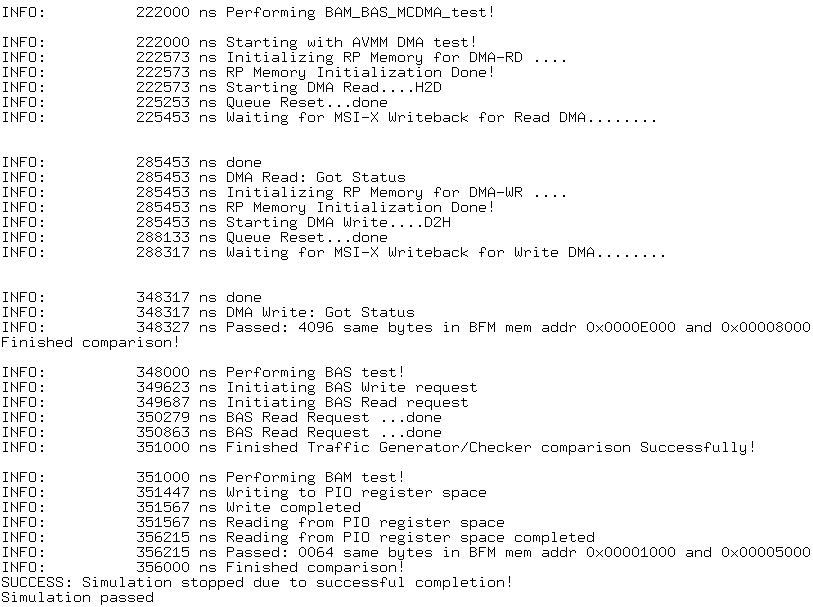

Figure 12. Simulation Log

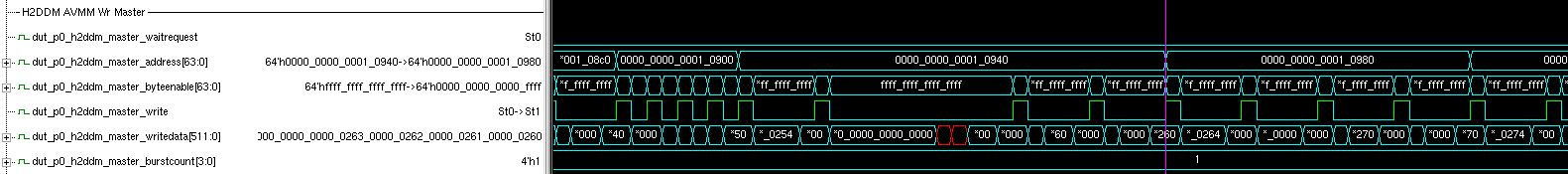

Figure 13. Simulation Waveform 1The simulation was run with MCDMA P-Tile.

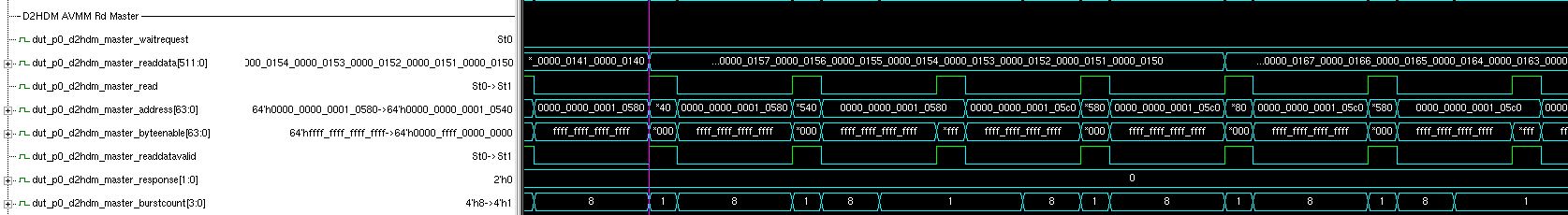

Figure 14. Simulation Waveform 2The simulation was run with MCDMA P-Tile.
