3.5.10.2. PIO Test

  1. Build and install the Netdev driver. For more information, refer to Build and Install Netdev Driver.
  2. Build the Netdev User Space application:
    $ cd p0_software/user/libmcmem/
$ make clean all
$ sudo cp libmcmemsoc.so /usr/local/lib
$ sudo ldconfig
$ cd ../cli/netdev_app/
$ make clean all
  3. Initiate the PIO test.

    $./netdev_app --pio --ifname ifc_mcdma0

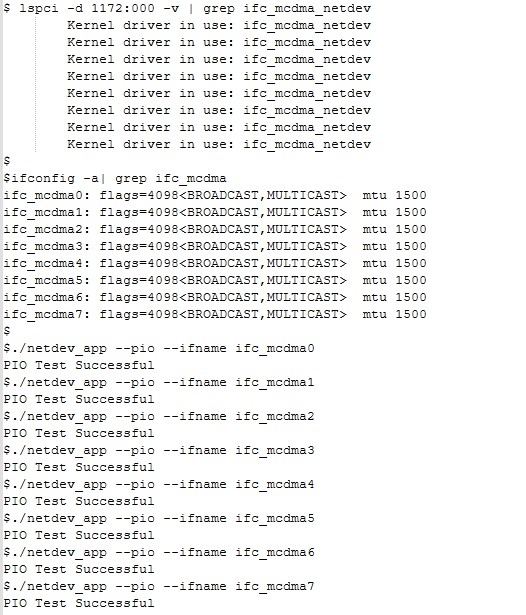

    Figure 53. PIO Test Results
