3.5.9.3.3. Avalon-ST Device-side Packet Loopback (Device-side Packet Loopback)

The DPDK driver can also be used with the AVST/AXIST Device-side Packet Loopback design example to test loopback.

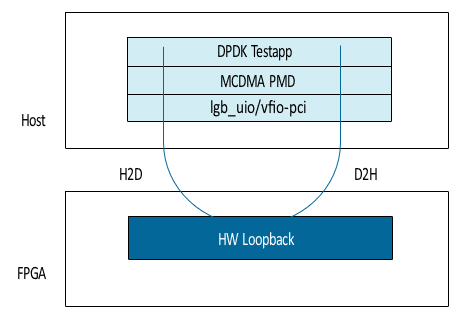

The following diagram shows the testing strategy.

Run the command below to perform a loopback test after completing the instructions outlined in Prerequisites:

$ cd dpdk-stable/build/examples/mcdma-test/perfq

$ sudo ./build/mcdma-test -m 8192 --file-prefix=pf0 -l 0-15 \
-- -b 0000:01:00.0 -p 32768 -d 2 -c 1 -a 2 -l 5 -i
Configuration:
  • Memory allocation size (-m 8192)
  • Physical function number (--file-prefix=pf0)
  • Number of CPU cores (-l 0-15), to match the output from “sudo lscpu | grep NUMA” command.
  • BDF (-b 0000:01:00.0)
  • Total of two threads (-a 2)
  • 1 channel (-c 1)
  • Bidirectional H2D-D2H loopback (-i)
  • Payload length of 32,768 bytes in each descriptor (-p 32768)
  • Transfer the data every 5 seconds (-l 5)
  • Dump the progress log every second (-d 2)
  • Number of CPU cores (-l 0-15), to match the output from the “sudo lscpu | grep NUMA” command.

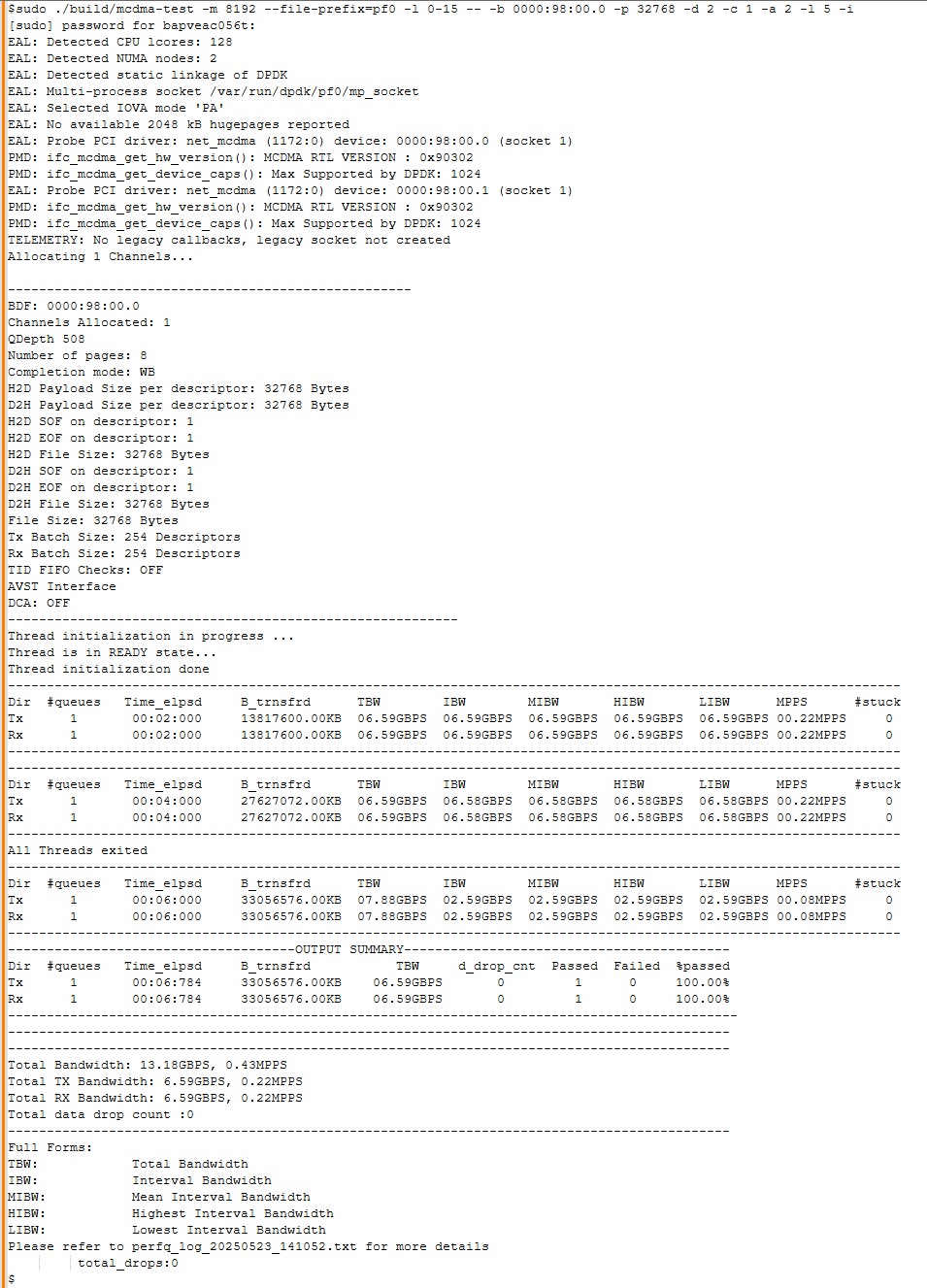

Figure 45. Results of Loopback Test
