2.2.2.1. Simulation Results

Testbench writes 4 KB of incrementing pattern to on-chip memory and read back via Avalon-MM PIO interface. This design example testbench doesn’t simulate H2D/D2H data movers.

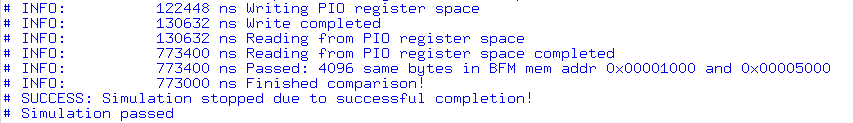

Figure 3. Simulation Log

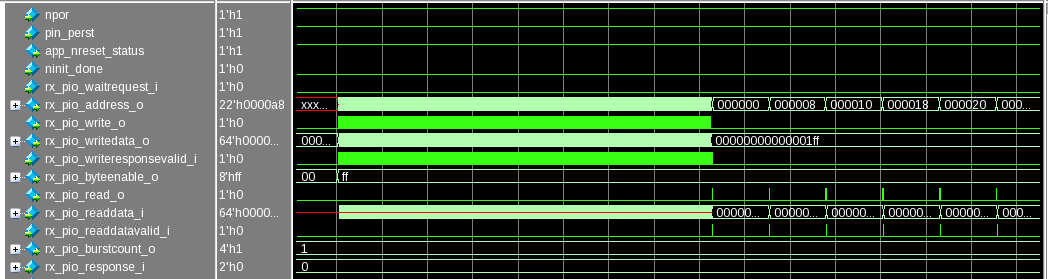

Figure 4. Simulation Waveform
