3.5.9.3.3.1. DMA Test Beyond 256 Channels

If the design example is generated with the number of channels greater than 256, follow this procedure to run a DMA test.

  1. Define the following software flag in

    p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/drivers/net/mcdma/rte_pmd_mcdma.h :

    #define IFC_MCDMA_DIDF

  2. Configure the mem zone in

    p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/config/rte_config.h .

    #define RTE_MAX_MEMZONE 20480

  3. Undefine single function mode in

    p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/examples/mcdma-test/perfq/meson.build .

    -UIFC_MCDMA_SINGLE_FUNC

  4. Update the static channel mapping in

    p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/examples/mcdma-test/perfq/perfq_app.h by modifying the following parameters:

    /* PF count starts from 1 */

    #define IFC_QDMA_CUR_PF <pf number>

    /*VF count starts from 1. Zero implies PF was used instead of VF */

    #define IFC_QDMA_CUR_VF <vf number>

    /* Number of PFs */

    #define IFC_QDMA_PFS <number of PFs>

    /* Channels available per PF */

    #define IFC_QDMA_PER_PF_CHNLS <number of channels per PF>

    /* Channels available per VF */

    #define IFC_QDMA_PER_VF_CHNLS <number of channels per VF>

    /* Number of VFs per PF */

    #define IFC_QDMA_PER_PF_VFS <number of VFs per PF>

  5. Rebuild the DPDK application using the following commands for the new settings to take effect.

    $ cd p0_software/dpdk/dpdk/patches/v21.11.2/dpdk-stable/

    $ sudo meson build --reconfigure

    $ sudo DESTDIR=install ninja -C build install

    $ cd build

    $ sudo meson configure -Dexamples=mcdma-test/perfq -Denable_kmods=true

    $ sudo ninja

  6. Navigate to the perfq folder:

    $ cd examples/mcdma-test/perfq

  7. Verify the Packet Loopback design example variant using the following command:
    $ sudo ./build/mcdma-test -m 16384 -l 0-8 -- -p 64 -l 2 \
-i -d 1 -c 2048 -a 4

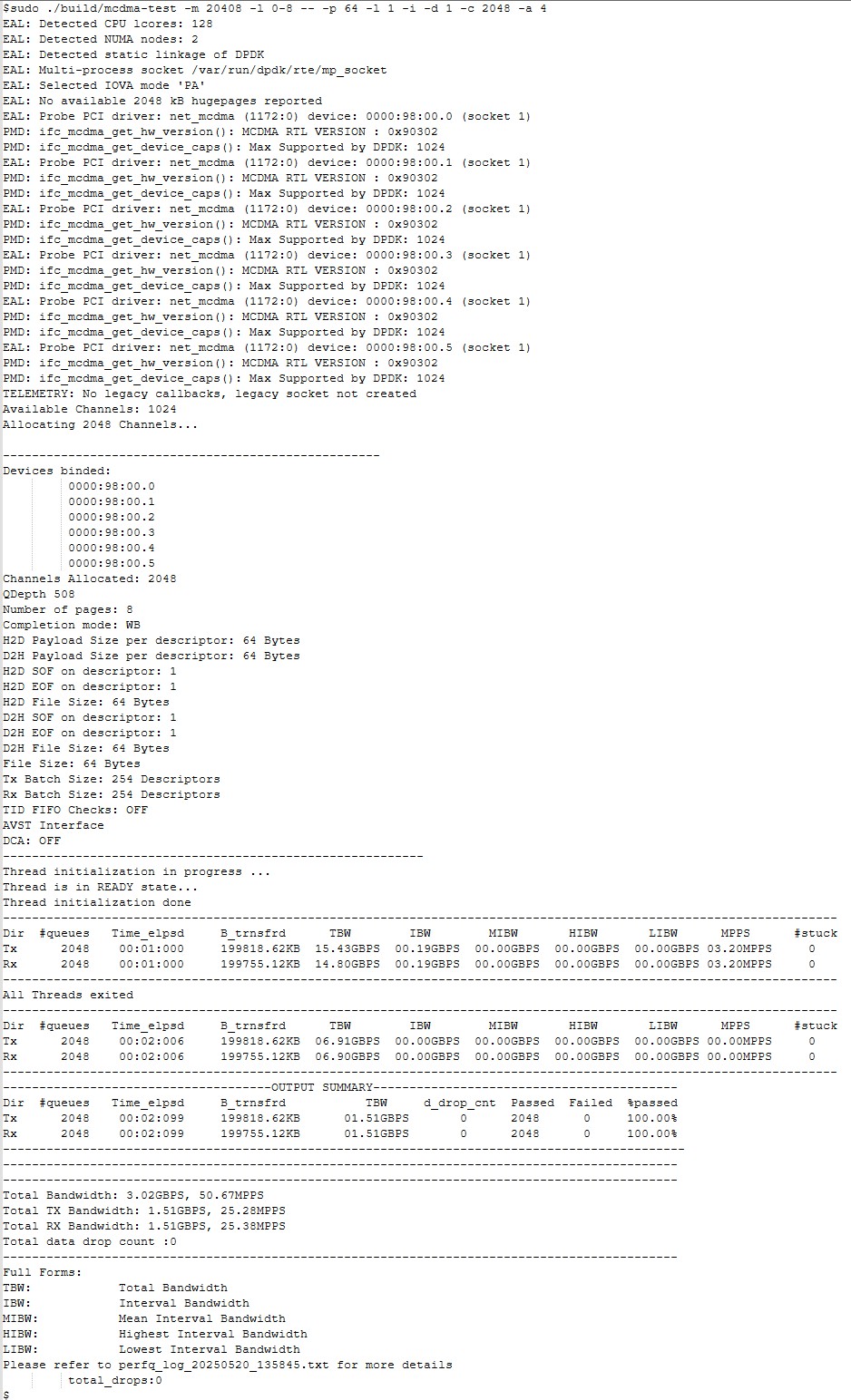

Figure 46. DPDK Avalon-ST Device-side Packet Loopback Design Example Gen4 x16: P-Tile Hardware Test Result
Note: For a 2048-channel test, use the following configurations:
  • With SR-IOV: 2 PFs (512 channels per PF) and 2 VFs per PF (256 channels per VF).

    Without SR-IOV : 4 PFs (512 channels per PF).

Note:
  • In the current release, a single page is supported in DIDF mode.
  • In the current release, a simultaneous process is not supported in DIDF mode. You can run one process with 2K channels.
