3.5.8.1.4. Build the Reference Application

Run the following commands to build the reference application:

$ cd p0_software/user/cli/perfq_app/
$ make clean && make all
$ ./perfq_app -h

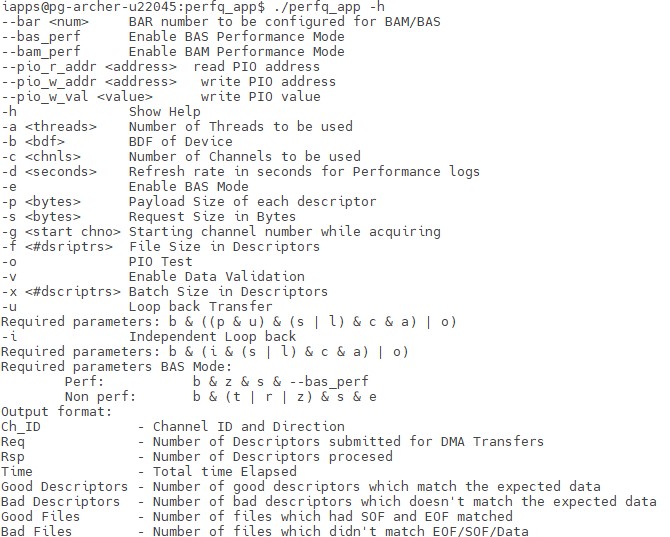

The last command displays the available options in the application, as shown in the image below:

Refer to the README fie located in the software/user/cli/perfq_app directory for more information.
