2.4. Step 4: Exporting the Core Partition and Creating the Black Box File
After compilation, you export the core partition and create a supporting black box port definitions file. This tutorial reuses the final compilation snapshot.

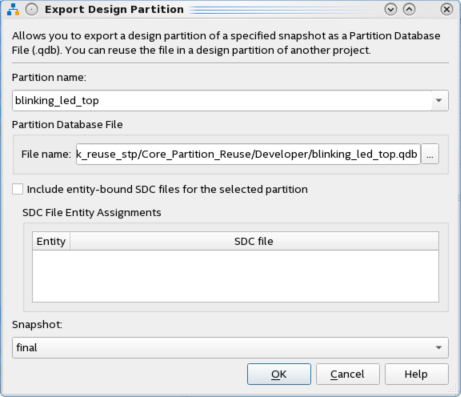

- Click Project > Export Design Partition. Select blinking_led_top for the Partition name, and the final Snapshot for export.
- Confirm blinking_led_top.qdb as the Partition Database File name, and then click OK. The final blinking_led.qdb that you export preserves the placement and routing information from the Developer project reused in the Consumer project.
- To create the black box file, click File > New, select SystemVerilog HDL File under Design Files, and then click OK.
A blank .sv file opens to allow you to enter the port definitions for the partition you export and the partition boundary ports created in Step 3: Compiling and Checking Debug Nodes.
- Include any Verilog parameters or VHDL generics in the definition. The port definitions in the black box file must look just like the original, without the logic RTL.
module blinking_led_top( output [3:0] value, input clock, output db_count_0, output db_count_1, output db_count_2, output db_count_24, output db_value_0, output db_value_1, ); endmodule

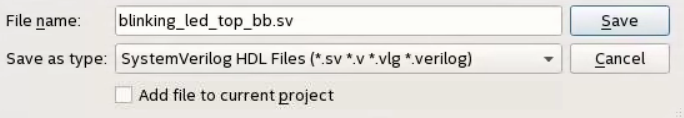

- Save the black box file as blinking_led_top_bb.sv. When saving this file, turn off the option to Add file to current project.
