27.2. Full Raster to Clocked Video Converter Parameters

The IP offers compile-time parameters.
Table 461.  Main Parameters
Parameter Values Description
Video Data Format
CV Bus Style Lite, CVI or CVO

Select which sideband signals the IP drives, and which signals are available in Platform Designer.

A second tab allows configuration of the CV bus style.

Bits per color sample 6 to 16 Number of bits per color sample
Number of color planes 1 to 4 Number of color planes in a pixel
Number of pixels in parallel 1, 2, 4 or 8 Number of pixels transmitted every clock
AXI4S FR Bus has tReady connection True or false

Select True so the full raster interface contains the AXI4-S tReady signal.

Select False to remove the tReady signal.

Control Settings 73
Memory-mapped control interface True or false Select True, to enable the CPU interface and associated signals. When False, the IP removes the CPU interface, and all CPU registers use default values.
Separate clock for control interface True or false

Select True to include the signal cpu_clock to Platform Designer. You can assume it to be asynchronous to the video domain.

When False, the CPU interface uses the signal vid_clock.

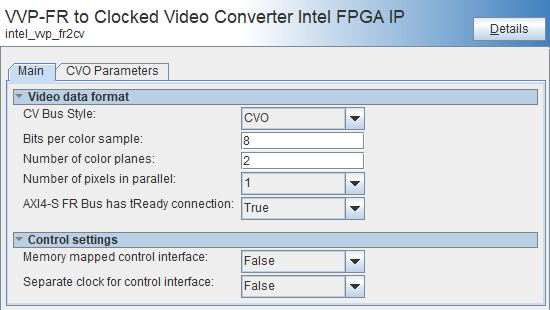

Figure 73. Main Parameters
Table 462.  Lite Parameters
Parameters Values Description
Parameters
Valid signal On or off When you select Lite the IP includes an optional data valid output signal, cv_vid_out_valid. Turn on to turn on this output in the IP. The Platform Designer GUI includes or removes the signal from the cv_vid_out conduit as appropriate.
Ready signal On or off When you select Lite, the IP includes an optional data ready input signal, cv_vid_out_ready. Turn on to turn on this input in the IP. Platform Designer includes or removes the signal from the cv_vid_out conduit as appropriate.
Timing signals sync, blank, or both Select which timing signals (blank timing or sync timing) are available. Platform Designer includes or removes the signals from the cv_vid_out conduit as appropriate

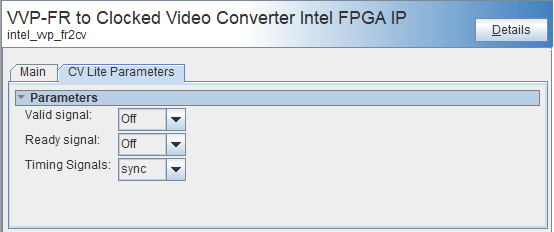

Figure 74. Lite Parameters
Table 463.  CVI Parameters
Parameter Allowed Range Description
CVI Core Parameters
Export the total resolution No Export or Add signals for export

The dimensions of the full raster (active and blanking) can be output from the IP as 16-bit signals.

Platform Designer includes or removes the signals from the cv_vid_out conduit as appropriate

CVI Legacy Tie Offs
Include the vid_hd_sdn signal True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the vid_std signal True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Width of vid_std 1 to 16 The width of the vid_std signal.
Include the hdmi_duplication signal True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.

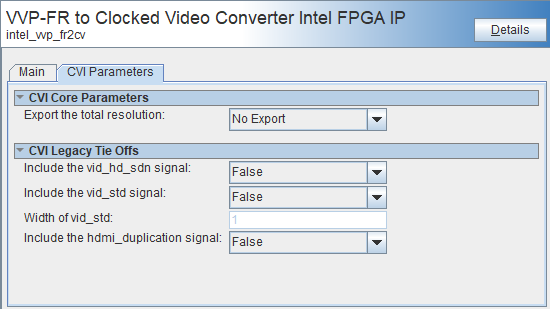

Figure 75. CVI Parameters
Table 464.  CVO Parameters
Parameters Allowed Range Description
CVO Legacy Tie Offs
Use CV Clock True or False

Select True to add this signal to the cv_vid_out conduit.

The clock signal is an input on the cv_vid_out conduit. If you select True, the IP uses it as the internal video clock.

Include the underflow signal True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the vid_mode_change signal True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the frame lock signals True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Include the vid_std signal True or False Select True to add this signal to the cv_vid_out conduit. The signal has no function within the IP and is included for connectivity within Platform Designer.
Width of vid_std 1 to 16 The width of the vid_std signal.

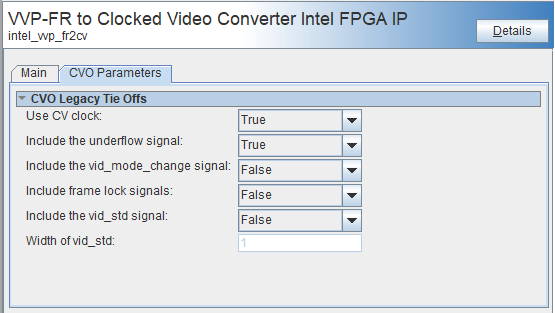

Figure 76. CVO Parameters
73 These parameters are only available when you select CVI or CVO for CV Bus Style
