8.2. 1D LUT IP Parameters
The IP offers run-time and compile-time parameters.
Parameter | Values | Description |
---|---|---|
Video Data Format | ||
Lite mode | On | The IP only supports lite mode |
Input bits per color sample | 8 to 16 | Select the number of input bits per color sample. |
Output bits per color sample | 8 to 16 | Select the number of output bits per color sample. |
Number of color planes | 1 to 4 | Number of color planes processed per pixel. |
Number of pixels in parallel | 1 to 8 | Select the number of pixels in parallel. |
Maximum Frame Size | ||
Maximum field height | 1k, 2k, 4k, 8k, 16k | Specify the maximum height of incoming frames |
Maximum field width | 2k, 4k, 8k, 16k | Specify the maximum width of incoming frames |
Control Parameters | ||
Equidistant LUT Entries | On or off | Turn on to distribute LUT entries equally across the dynamic range. When off, the IP divides the LUT into segments. When on, the segments at the lower end of the dynamic range are denser. The ones at the upper end are sparser. |
Maximum number of bits to address all LUT entries | 8 to 12 | Maximum number of LUT entries in bits. This value cannot exceed the bits per color sample value. |
Number of bits to address LUT segments | Derived | When Equidistant LUT Entries is on, the IP divides the LUT into segments. The IP derives this parameter from input bits per color sample, maximum number of LUT address bits, and sparsity bit parameters. Only visible when Equidistant LUT Entries is off. |
Sparsity progression across segments (in bits) | 1 to 2 | The sparsity progression factor between neighboring LUT segments in number of address bits. Only available when Equidistant LUT Entries is off. |
Reverse LUT | On or off | Allows you to use the LUT entries in reverse order. |
General | ||
Pipeline ready signal | On or off | Turn on to add extra pipeline registers to the AXI4-S tready signals |
Separate clock for control interface | On or off | Turn on for a separate clock for the control agent interface |
Debug features | On or off | Turn on to read back frame information registers and debugging information registers via the control agent interface. |

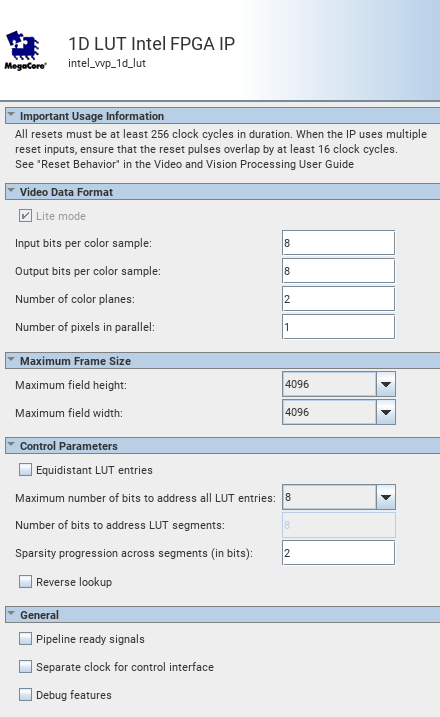

Figure 13. 1D LUT IP GUI
