20.2. Color Plane Manager IP Parameters

The IP offers compile-time parameters. Set these from the GUI in Platform Designer.
Parameter Values Description
Color plane manager mode
Color plane manager mode Merge, rearrange, split

Select what you want the IP to do with the color planes.

When you select merge, the IP uses input 0 and 1 and output 0.

When you select rearrange, the IP uses input 0 and output 0.

When you select split, the IP uses input 0 and outputs 0 and 1.

Color planes configuration
Number of color planes per pixel for input 0 1 - 4 Select the number of color planes for input 0.
Number of color planes per pixel for input 1 1 - 4

Select the number of color planes for input 1.

Number of color planes per pixel for output 0 1 - 4 Select the number of color planes for output 0.
Number of color planes per pixel for output 1 1 - 4

Select the number of color planes for output 1.

Video data precision
Bits per color plane 8 to 16 Select the number of bits per color plane.
Pixels in parallel
Number of pixels in parallel 1 - 8 Select the number of pixels in parallel.
Rearrange mode configuration
Mapping for output color plane 0 0,1,2,3 or padding Select the required input color plane for output color plane 0. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run time by turning on Memory-mapped control interface, otherwise specify a static value.
Static padding value for output color plane 0 0 to 2[bits per color sample] -1 Set this value if you want to pad this color plane and Memory-mapped control interface is off.
Mapping for output color plane 1 0,1,2,3 or padding Select the required input color plane for output color plane 1. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run time by turning on Memory-mapped control interface, otherwise specify a static value.
Static padding value for output color plane 1 0 to 2[bits per color sample] -1 Set the padding if you want to pad this color plane and Memory-mapped control interface is off.
Mapping for output color plane 2 0,1,2,3 or padding Select the required input color plane for output color plane 2. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run time by turning on Memory-mapped control interface, otherwise specify a static value.
Static padding value for output color plane 2 0 to 2[bits per color sample] -1 Set the value if you want to pad the color plane and Memory-mapped control interface is off..
Mapping for output color plane 3 0,1,2,3 or padding Select the required input color plane for output color plane 3. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run-time by turning on Memory-mapped control interface, otherwise specify a static value.
Static padding value for output color plane 3 0 to 2[bits per color sample] -1 Set the padding if you want to pad this color plane and Memory-mapped control interface is off.
Split mode configuration for output 0
Keep color plane 0 On or off Select to keep color plane 0 for output 0. The IP concatenates color planes for the final output.
Keep color plane 1 On or off Turn on to keep color plane 1 for output 0. The IP concatenates color planes for the final output.
Keep color plane 2 On or off Turn on to keep color plane 2 for output 0. The IP concatenates color planes for the final output.
Keep color plane 3 On or off Turn on to keep color plane 3 for output 0 The IP concatenates color planes for the final output.
Split mode configuration for output 1
Keep color plane 0 On or off Turn on to keep color plane 0 for output 1. The IP concatenates color planes for the final output.
Keep color plane 1 On or off Turn on to keep color plane 1 for output 1. The IP concatenates color planes for the final output.
Keep color plane 2 On or off Turn on to keep color plane 2 for output 1. The IP concatenates color planes for the final output.
Keep color plane 3 On or off Turn on to keep color plane 3 for output 1. The IP concatenates color planes for the final output.
Merge mode configuration for input 0
Keep color plane 0 On or off Turn on to keep color plane 0 from input 0. The IP concatenates color planes for the final output.
Keep color plane 1 On or off Turn on to keep color plane 1 from input 0. The IP concatenates color planes for the final output.
Keep color plane 2 On or off Turn on to keep color plane 2 from input 0. The IP concatenates color planes for the final output.
Keep color plane 3 On or off Turn on to keep color plane 3 from input 0. The IP concatenates color planes for the final output.
Merge mode configuration for input 1
Keep color plane 0 On or off Turn on to keep color plane 0 from input 1. The IP concatenates color planes for the final output.
Keep color plane 1 On or off Turn on to keep color plane 1 from input 1. The IP concatenates color planes for the final output.
Keep color plane 2 On or off Turn on to keep color plane 2 from input 1. The IP concatenates color planes for the final output.
Keep color plane 3 On or off Turn on to keep color plane 3 from input 1. The IP concatenates color planes for the final output.
Control
Keep input 1 aux/user metapackets in merge mode On or off When you select merge, turn on to keep all metapackets (including any user or auxiliary packets) from input 1 and from input 0.
Keep output 1 aux/user metapackets in split mode On or off When you select split, turn on to route all metapackets (including any user or auxiliary packets) to output 1 and to output 0.
Lite mode On or off Turn on for a lite variant of the color plane manager IP.
Memory mapped control interface On or off Turn on if you select rearrange and you need run-time control of the padding values or if you need access to debugging features.
Separate clock for control interface On or off Turn on if Memory mapped control interface is on and your control system is on a different clock than the streaming video interfaces clock.
Debug features On or off Turn on if Memory mapped control interface is on to enable debugging features.

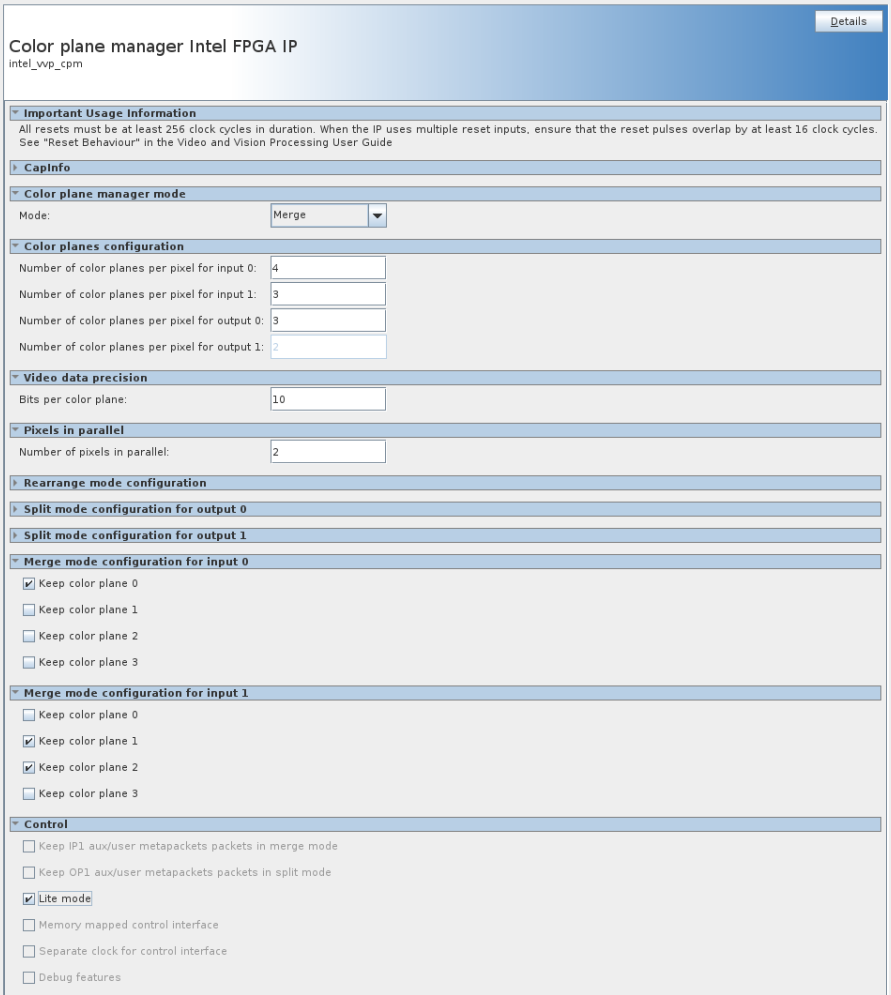

Figure 45. Color Plane Manager IP GUI - Merge Mode
Figure 46. Color Plane Manager IP GUI - Rearrange Mode

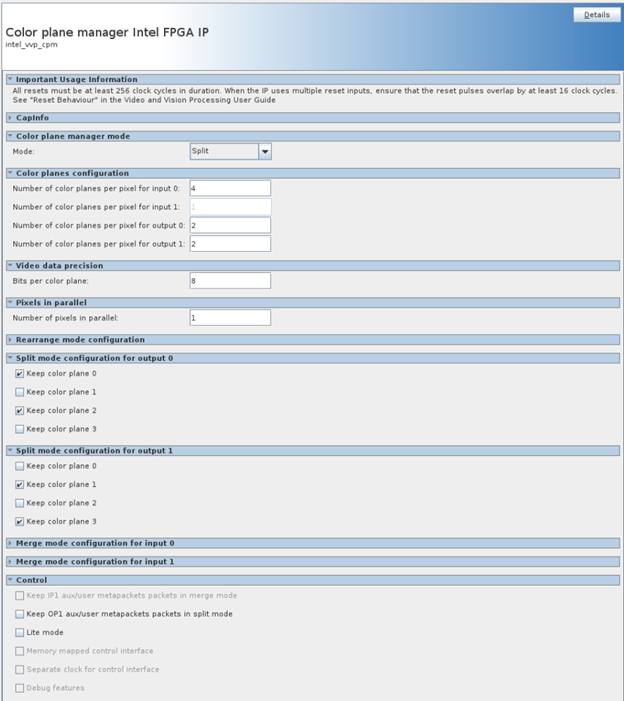

Figure 47. Color Plane Manager IP GUI - Split Mode
