2.8. HTML Report: Kernel Design Concepts

Familiarizing yourself on how the implements OpenCL design components such as kernels, global memory interconnect, local memory, loops, and channels can help you optimize your OpenCL design.

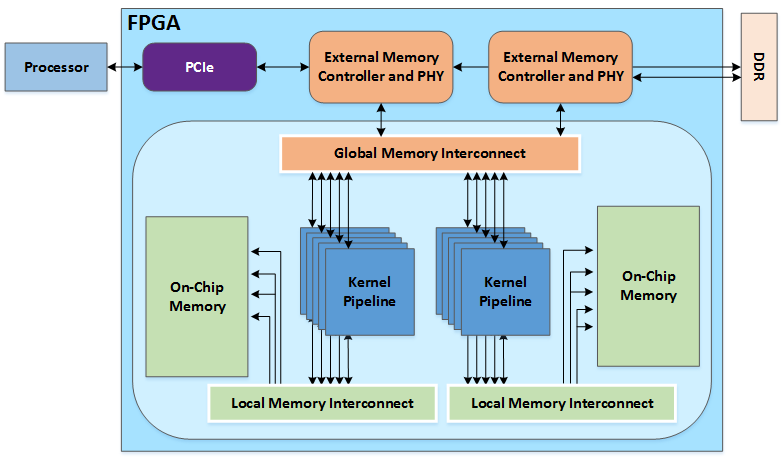

Figure 34. OpenCL Design Components
