12.10.2.1. Verifying High-Level Configuration

Memory Device

Verify that the correct memory Number of Channels, Data DQ Width, Die Density, and CS width are selected for the memory configuration used. Inaccurate information can result in calibration failure or traffic failure.

The example below shows memory parameterization based on an Agilex™ 5 FPGA E-Series 065B Premium Development Kit targeting an MT53E1G32D2FW LPDDR4 EMIF configuration:

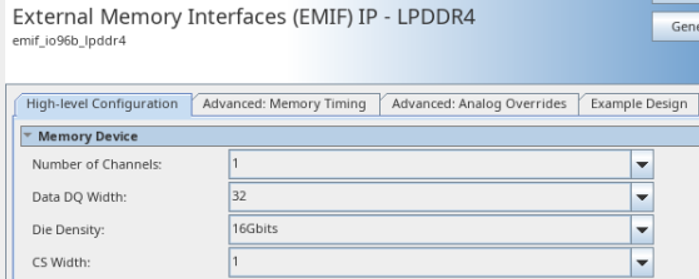

Figure 45. Example of MT53E1G32D2FW LPDDR4 EMIF Configuration

  • Number of Channels: 1. (A/C pins are shared between CH_A and CH_B)
  • Data DQ Width: 32. (DQ pins per memory channel. Die 1 and Die 2 implemented as single x32 interface.)
  • Die Density: 16 Gbits. (Select capacity of each memory die (in Gbits), not total memory density per interface.)
  • CS width: 1. (Above topology is single-rank per channel.)
Figure 46. Example EMIF IP High Level Configuration

Pin Swizzle Map

The Quartus® Prime software uses fixed pin placement for each supported memory standard, as described in the Pin Placement topic in the Architecture chapter. Do not make changes using a .qsf assignment or the pin planner if you need to swap the DQ pins within a DQS group or the DQS group within a channel/interface. Fitter errors may occur if you enter the incorrect pin location for the EMIF interface. The following is an example of a fitter error for LPDDR4 protocol when an incorrect pin assignment is specified:

Error (175001): The Fitter cannot place 1 BYTE, which is within Generic Component ed_synth_emif_io96b_lpddr4_0.

The Pin Swizzle Map allows you to specify the ordering of the physical connections of each DQ pin on the memory component to the FPGA. Incorrect information entered in the Pin Swizzle Map may cause calibration errors.

Refer to the External Memory Interfaces (EMIF) IP Design Example User Guide: Agilex™ 5 FPGAs and SoCs for details on configuring DQ pin swizzling.

Figure 47. Example of a Pin Swizzle Map Entry

Pin Swizzle Map for Component interfaces

For component interfaces, you must match the net name in the schematic to the index of default pin placement, to determine the pin swizzling specification.

Consider the example of DQS Group 0 for Channel 1 on the LPDDR4 Component interface on the Agilex™ 5 FPGA E-Series 065B Premium Development Kit targeting MT53E1G32D2FW LPDDR4 memory, as shown in the table below:

Table 231.  Example of Pin Swizzle Targeting a Component-type Memory Interface
Lane Pin Pin Index Default Pin Placement Net Name in Schematic Swizzling Index
BL6 CA59 83 MEM_0_MEM_DQ [23] MEM_1_MEM_DQ [11] 11
BW59 82 MEM_0_MEM_DQ [22] MEM_1_MEM_DQ [10] 10
BR59 81 MEM_0_MEM_DQ [21] MEM_1_MEM_DQ [8] 8
BU59 80 MEM_0_MEM_DQ [20] MEM_1_MEM_DQ [9] 9
GR62 79
BU62 78 MEM_0_MEM_DMI [2] MEM_0_MEM_DMI [1]
CA69 77 MEM_0_MEM_DQS_C [2] MEM_0_MEM_DQS_C [1]
BW69 76 MEM_0_MEM_DQS_T [2] MEM_0_MEM_DQS_T [1]
BU71 75 MEM_0_MEM_DQ [19] MEM_1_MEM_DQ [12] 12
BR71 74 MEM_0_MEM_DQ [18] MEM_1_MEM_DQ [14] 14
BU69 73 MEM_0_MEM_DQ [17] MEM_1_MEM_DQ [13] 13
BR69 72 MEM_0_MEM_DQ [16] MEM_1_MEM_DQ [15] 15

For this specific group, the correct pin swizzling specification is:

PIN_SWIZZLE_CH0_DQS1 = 15,13,14,12,9,8,10,11;

The following example shows pin swizzle map parameters based on an Agilex™ 5 FPGA E-Series 065B Premium Development Kit targeting LPDDR4 EMIF. You must add all parameters to the pin swizzle map in a single line, each separated by semi-colons as shown:

BYTE_SWIZZLE_CH0=3,2,X,X,X,X,1,0;
PIN_SWIZZLE_CH0_DQS1=15,13,14,12,9,8,10,11;
PIN_SWIZZLE_CH0_DQS0=3,2,1,0,5,4,7,6;
PIN_SWIZZLE_CH0_DQS3=31,30,28,29,25,24,26,27;
PIN_SWIZZLE_CH0_DQS2= 16,18,17,19,23,20,22,21;
