8.1.1.2.2. Write

Write timing analysis indicates the amount of slack on the DQ signals that are latched by the memory device using the DQS strobe output from the FPGA device.

As with read capture, the Timing Analyzer analyzes write timing paths through conventional static timing analysis and further processing steps that account for memory calibration (which may include pessimism removal) and calibration uncertainties as shown in the following figure.

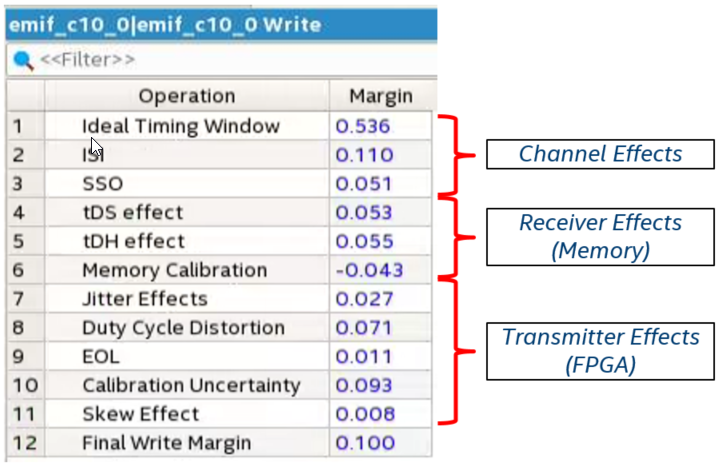

Figure 69. Write Timing Analysis

Write timing analysis
