5.3.1. The Configure Menu

Use Configure Menu to select the design you want to use. Each design example tests different board features. Select a design from this menu and the corresponding tabs become active for testing.

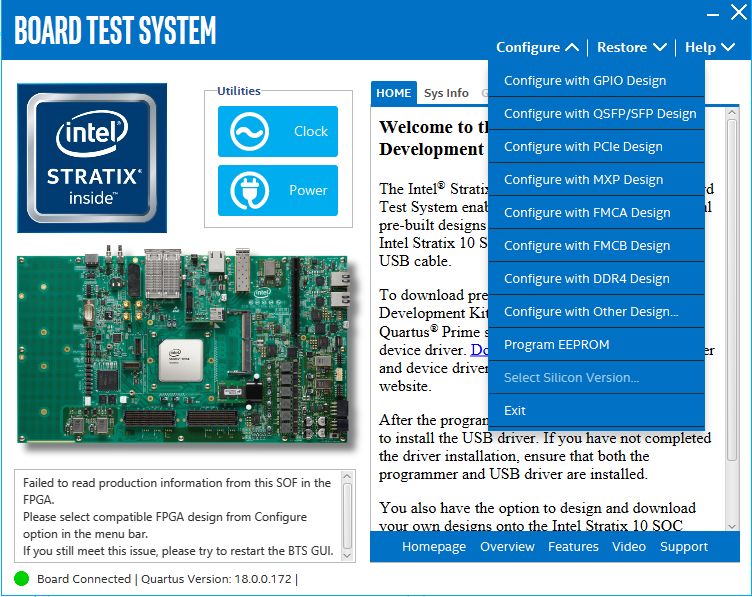

Figure 33. The Configure Menu
To configure the FPGA with a test system design, perform the following steps:
  • On the Configure menu, click the configure command that corresponds to the functionality you wish to test.
  • In the dialog box that appears, click Configure to download the corresponding design to the FPGA.

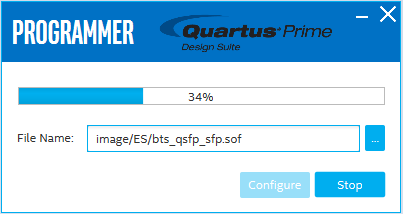

Figure 34. Programmer Dialog Window
