4.8.3.1. Boot QSPI Flash Daughter Card

This card supports a 2 Gb density QSPI NOR Flash manufactured by Micron. The QSPI NOR Flash uses TPBGA-24 package which is compatible with Intel EPCQ-L devices. To support EPCQ-L devices, you need to change BOM of the board.

The key features of the QSPI Flash used on this board are:
  • Micron P/N: MT25QU02GCBB8E12-0SIT
  • 2 Gb NOR Flash
  • 1.8V QSPI I/O
  • Operation Temperature: -40 C to +85 C
  • TPBGA-24 package which is compatible with Intel EPCQ-L devices

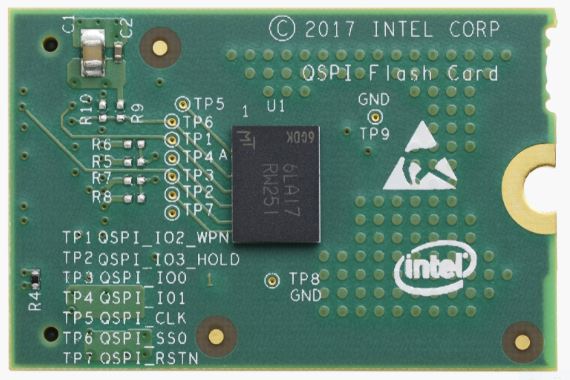

Figure 23. Boot QSPI Flash Daughter Card Picture
Figure 24. Boot QSPI Flash Daughter Card Block Diagram
