1. Overview

This document describes the features of the Intel® Stratix® 10 SoC development kit, including detailed pin-out and component reference information required to create custom FPGA designs that interface with all components of the board.
This development board comes in two different versions as shown in the table below.
Table 1.  Development Kit Version Information
Development Kit Version Ordering Code Device Part Number
Intel Stratix 10 SX SoC L-Tile

DK-SOC-1SSX-L-A

DK-SOC-1SSX-L-D

 1SX280LU2F50E1VG
Intel Stratix 10 SX SoC H-Tile DK-SOC-1SSX-H-A 1SX280HU2F50E1VGAS

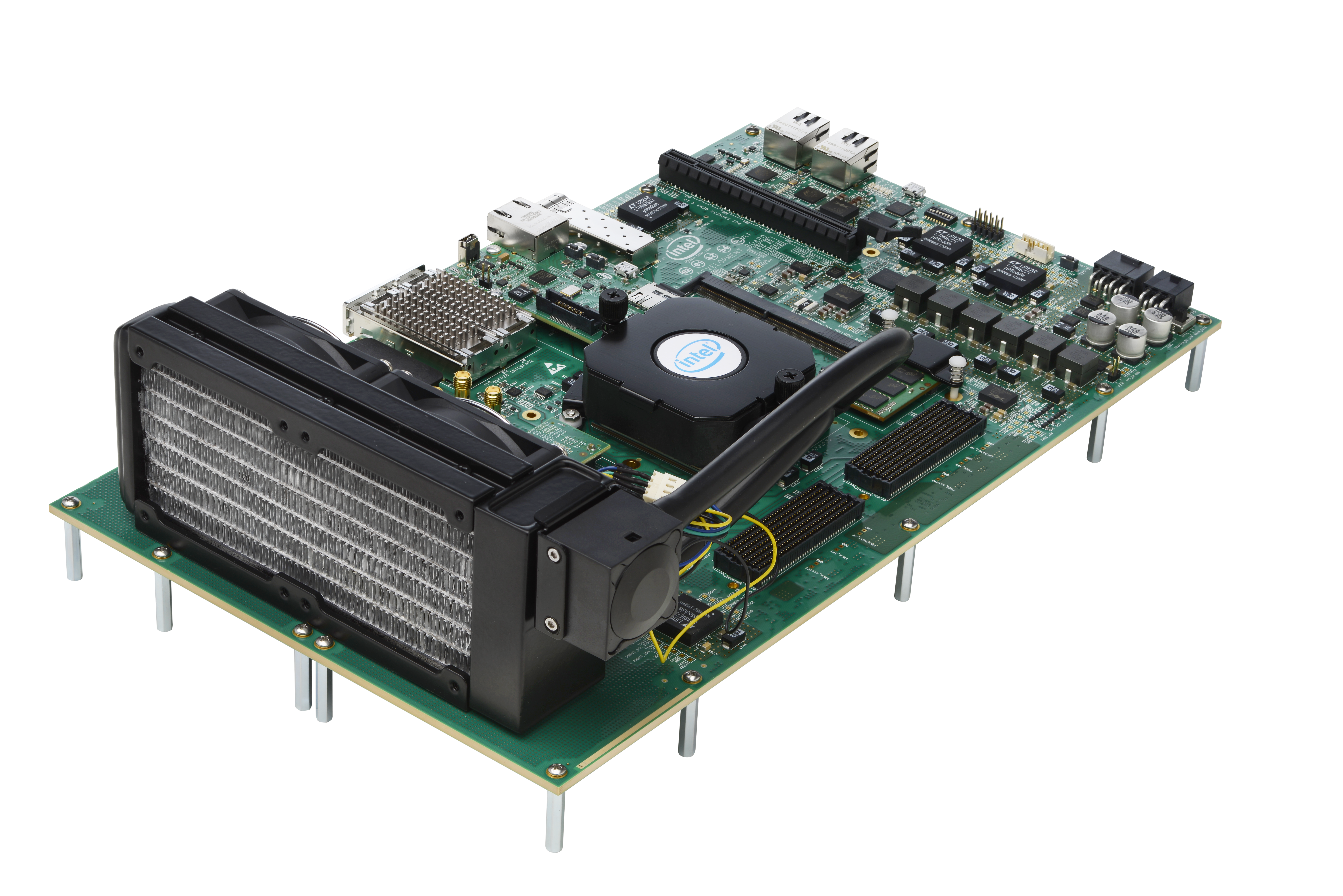

Figure 1. Development Kit Picture

Section Content
General Development Kit Description
Recommended Operating Conditions
Handling the Development Kit
