6. Validating the IP

Using the Quartus® Prime software, you can generate a design example for the GTS AXI Multichannel DMA IP core. The generated design example reflects the parameters that you specify. The design example automatically creates the files necessary to simulate and compile in the Quartus® Prime software. You can download the compiled design to your FPGA Development Board. To download to custom hardware, update the Quartus® Prime Settings File (.qsf) with the correct pin assignments.

Figure 29. Design Example Development Steps

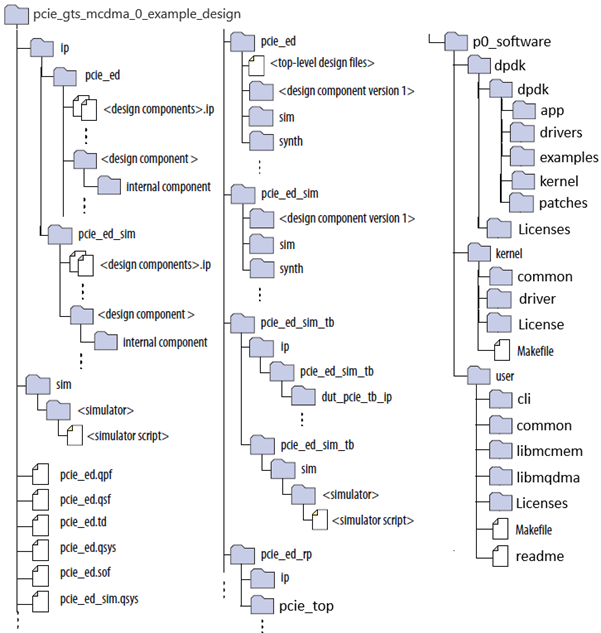

Figure 30. Design Example Directory Structure

Section Content
Hardware and Software Requirements
Running the Design Example Application on a Hardware Setup

Level Two Title
