2.1.3. Configuring and Generating the GTS AXI Streaming Intel FPGA IP for PCI Express

Adhere to the following procedure to generate the GTS AXI Streaming IP in standalone mode.

  1. In the IP Catalog, select GTS AXI Streaming Intel® FPGA IP for PCI Express (Library → Interface Protocols → PCI Express → GTS AXI Streaming Intel® FPGA IP for PCI Express) and then click Add.
  2. Specify a top-level name for your new custom IP variation and the directory for it. The IP Parameter Editor saves the IP variation settings in a file named <your_ip>.ip.

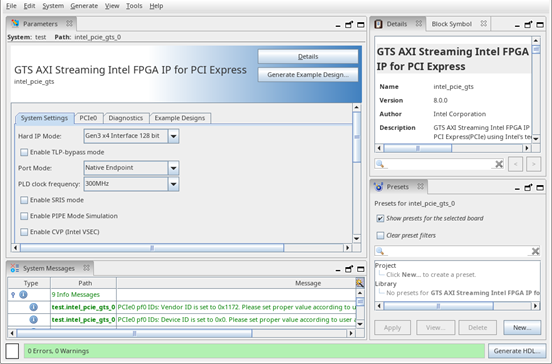

  3. Click Create. The IP Parameter Editor appears as shown in the figure below. The GTS AXI Streaming Intel FPGA IP for PCI Express has IP Settings, PCIe Settings, and Example Designs tabs to allow you to quickly configure your custom IP variation.
  4. Generate the GTS AXI Streaming Intel FPGA IP for PCI Express.
    1. Click Generate HDL. The Generation dialogue box appears. Specify the output file generation options.
    2. Click Generate. This allows you to generate a GTS AXI Streaming IP in the standalone mode with the IP variation files generated according to your specifications.
    3. Click Close when the IP generation is complete. The IP Parameter Editor adds the top-level.ip file to the current project automatically. If you are prompted to manually add the .ip file to the project, click Project → Add/Remove Files in Project to add the file.
