6.2.6.1.4. Build the Reference Application

  1. Build the reference application by running the commands below:
    $ cd p0_software/user/cli/perfq_app/
$ make clean && make all
$ ./perfq_app -h

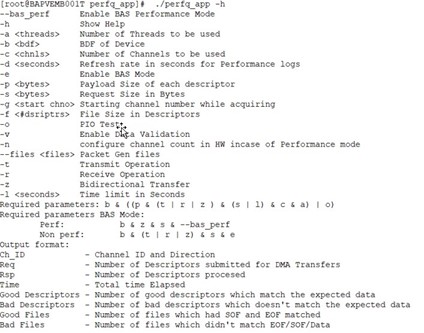

    This command displays the available options in the application, as shown in the image below:

    Refer to the README file located in the software/user/cli/perfq_app directory for more information.
