2.1.6. Configuring and Generating the Reset Release IP

Following is the process to configure and generate the Reset Release IP for any design in an Agilex™ 5 device.

  1. Select Reset Release IP in the IP Catalog.
  2. Select Reset Release IP (Library → Basic Functions → Configuration and Programming → Reset Release IP) and then click Add.
  3. Specify a top-level name for your new custom IP variation and the directory for it. The IP Parameter Editor saves the IP variation settings in a file named <your_ip>.ip.

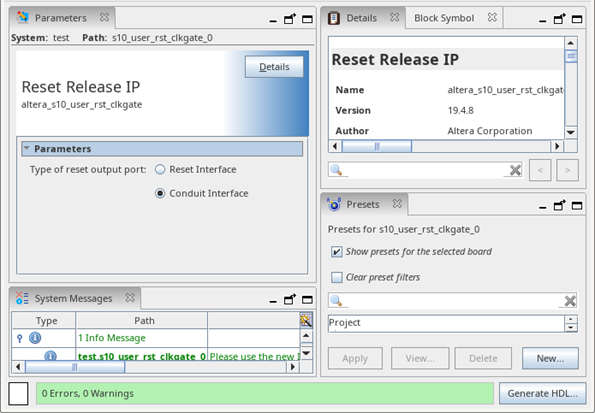

  4. Click Create. The IP Parameter Editor appears as shown in the figure below.
  5. Select Reset Interface for the output port to match the GTS AXI Streaming IP.
  6. Generate the GTS System PLL Clocks Intel FPGA IP.
    1. Click Generate HDL. The Generation dialogue box appears. Specify the output file generation options.
    2. Click Generate. The IP variation files are generated according to your specifications.
    3. Click Close when the IP generation is complete. The IP Parameter Editor adds the top-level.ip file to the current project automatically. If you are prompted to manually add the .ip file to the project, click Project → Add/Remove Files in Project to add the file.
