3.2.1. IP Settings

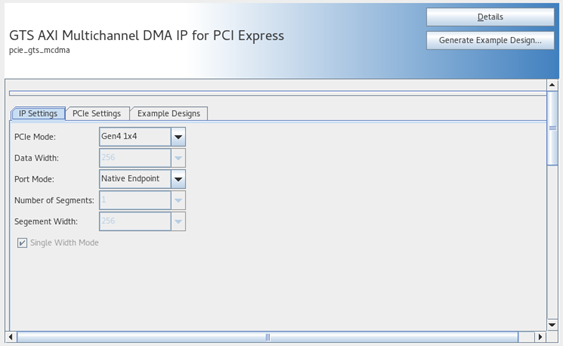

Figure 7. IP Settings Tab Parameters
Table 15.  IP Settings Parameters
Parameter Value Default Value Description
PCIe Mode

Gen4 1x4

Gen3 1x4

Gen4 1x4

Selects the width of the data interface between the transaction layer and the application layer implemented in the PLD fabric, the lane data rate and the lane rate.

Selects the following elements:

  • Lane data rate: Gen3 and Gen4 are supported.
  • Lane width: x4 supports both Root Port and Endpoint modes.
Data Width

256

128

256

Supported data widths per the PCIe mode:

  • Gen4 1x4: 256 bits
  • Gen3 1x4: 128 bits

The IP Parameter Editor automatically selects a value per PCIe Mode settings.

Port Mode

Native Endpoint

Root Port

Native Endpoint Selects the port mode.
Number of Segments 1 1

Number of segments in the data interface. The IP Parameter Editor automatically selects a value per Data Width:

  • 256 bits: 1
  • 128 bits: 1
Segment Width

256

128

256 Segment data width. The IP Parameter Editor automatically selects a value based on the Data Width settings.
Single Width Mode On On Sets the Single Width Mode. The IP Parameter Editor automatically sets this to On based on the PCIe Mode and Data Width settings.
