6.2.7.2. PIO Test

  1. Complete the instructions outlined in Prerequisites before running the reference application mcdma-test:

    $ sudo ./build/mcdma-test -- -h

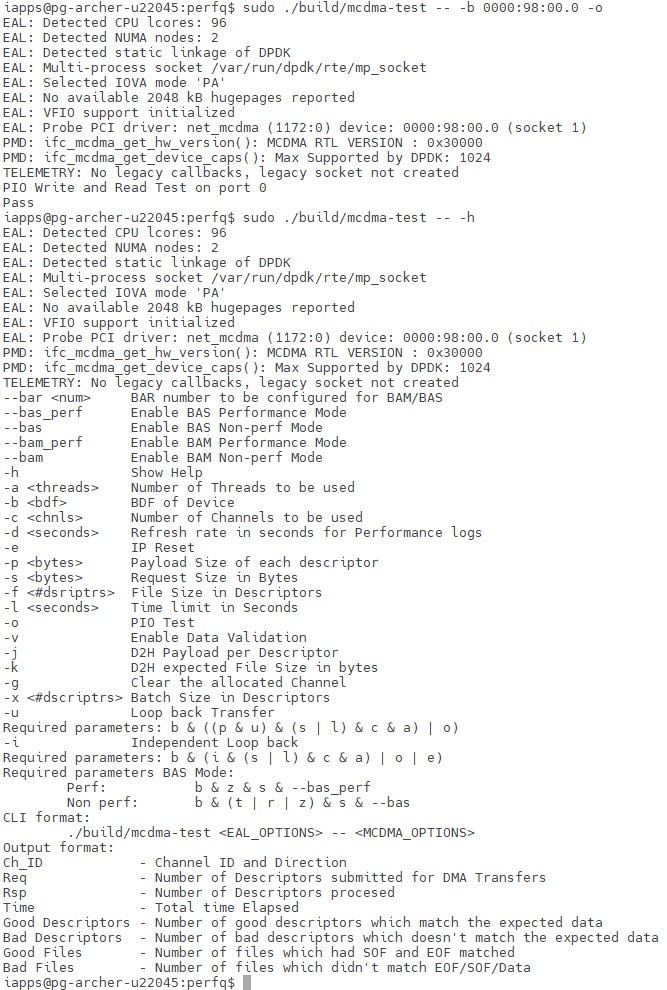

    This command displays the available options in the application as shown in the image below:

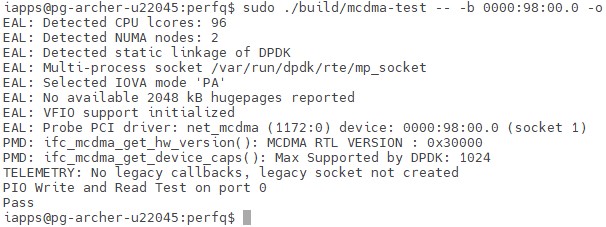

  2. Perform a PIO test to check if the setup works correctly. If successful, the application shows a Pass status.

    $ ./build/mcdma-test -- -b 0000:01:00.0 -o

    The -b option should be updated with the correct BDF of the endpoint device in the system.
