3.5. Compiling the Design Example

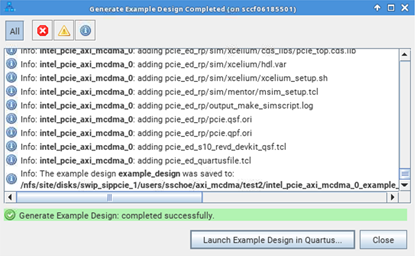

  1. After the design example generation is completed, click Launch Example Design in Quartus.
  2. Select pcie_ed.qpf and click OK to open the newly generated design example in the Quartus® Prime Pro Edition software.
  3. In the Quartus® Prime Pro Edition software, click Processing → Start Compilation to compile the design example and generate the bitstream (.sof) file.

For more information on the example design, refer to the Design Example Overview section.

For more information on how to run the example design on Hardware, refer to the chapter Validating the IP.
