3.2. Global Memory Interconnect

The ability to maximize memory bandwidth for read and write accesses is crucial for high performance computing. Various types of modules for reading from and writing to global memory can exist in an OpenCL™ system. These modules are called load-store units (LSUs).

Unlike a GPU, an FPGA can build any custom LSU that is best suited for the memory access pattern that the compiler infers for your application. As a result, your ability to write OpenCL code that selects the ideal LSU types for your application might help improve the performance of your design significantly.

When reviewing the HTML area report of your design, the values in the Global interconnect entry at the system level represents the size of the global memory interconnect.

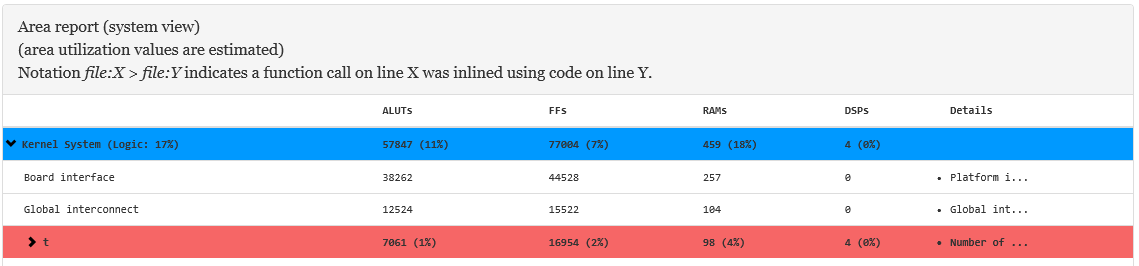

Figure 36. HTML Area Report Showing the Size of the Global Memory Interconnect in an OpenCL Design

In the HTML report, the system view of the System Viewer depicts global memory interconnects as loads (LD), stores (ST), and connections (gray lines).

Figure 37. System Viewer (System View) Result of Global Memory Interconnects in an OpenCL Design

The Intel® FPGA SDK for OpenCL Offline Compiler selects the appropriate type of LSU for your OpenCL system based on the memory access pattern of your design. Example LSU types include contiguous access (or consecutive access) and burst-interleaved access. Contiguous Memory Access and Global Memory Partitions illustrate the difference in access patterns between contiguous and burst-interleaved memory accesses, respectively.
