6.6.2. Enabling the R-Tile Debug Toolkit

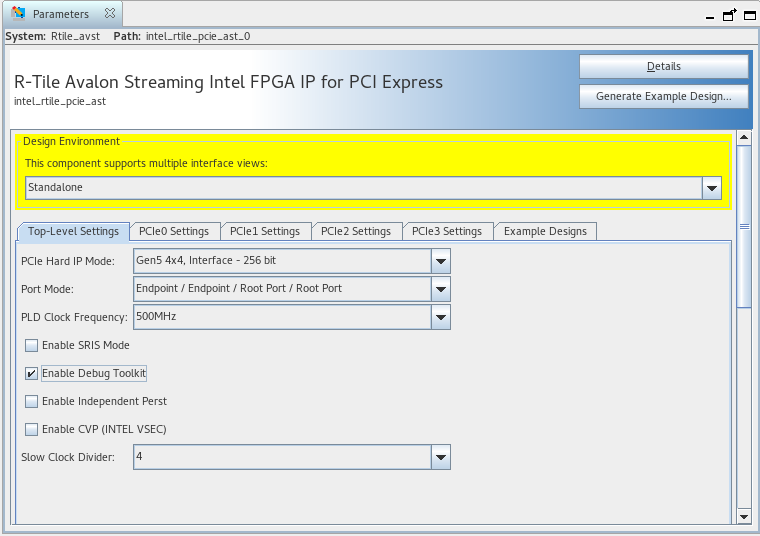

To enable the R-tile Debug Toolkit in your design, enable the option Enable Debug Toolkit in the Top-Level Settings tab of the R-tile Avalon Streaming Intel FPGA IP for PCI Express. When the Debug Toolkit is enabled via the Enable Debug Toolkit parameter, the Hard IP Reconfiguration Interface is automatically enabled.
