3.4.9. Reducing High-Speed Tile (HST) Usage

High-Speed tiles are available in the Intel® Arria® 10 design family.
  1. In the Advanced Fitter Settings pane, The Programmable Power Technology Optimization logic option controls how the fitter configures tiles to operate in high-speed mode or low-power mode. Select Minimize Power Only.
    Figure 38.  Programmable Power Technology Optimization
  2. Identify entity modules that use HST by plotting entity modules and HST heatmap on the Chip Planner and modify the floorplan to reduce usage.

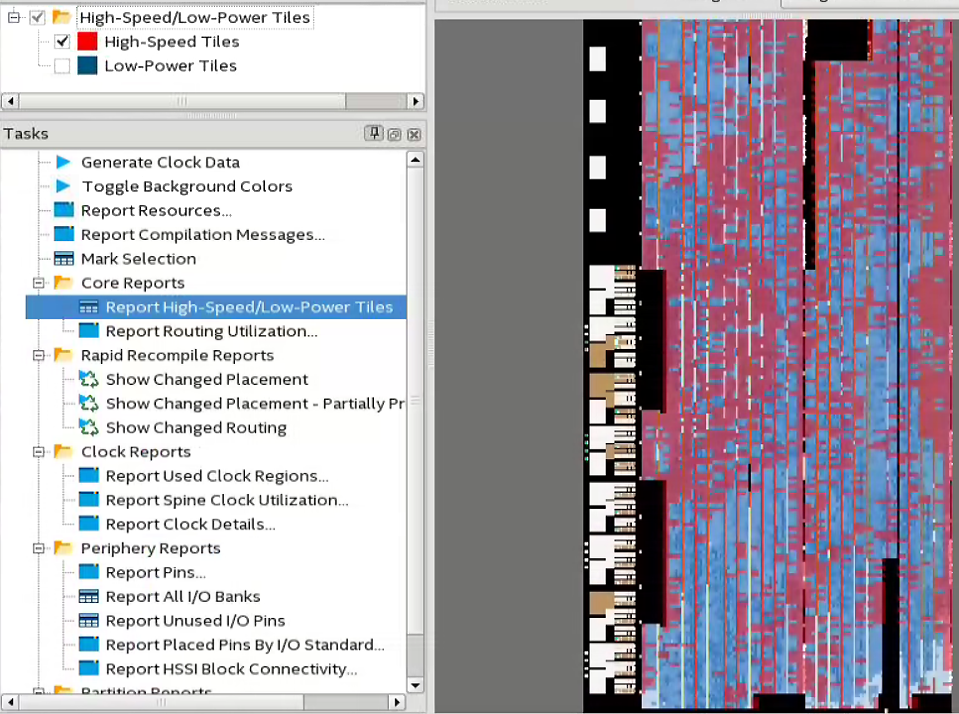

    Figure 39.  Entity Modules and HST Heatmap on the Chip Planner
