6.2.3. PCI Express and PCI Capabilities Parameters

For each core (PCIe0/PCIe1/PCIe2/PCIe3), the PCI Express / PCI Capabilities tab contains separate tabs for the device, PRS (Endpoint mode), MSI (Endpoint mode), ACS capabilities (Root Port mode), slot (Root Port mode), MSI-X, and legacy interrupt pin register parameters.

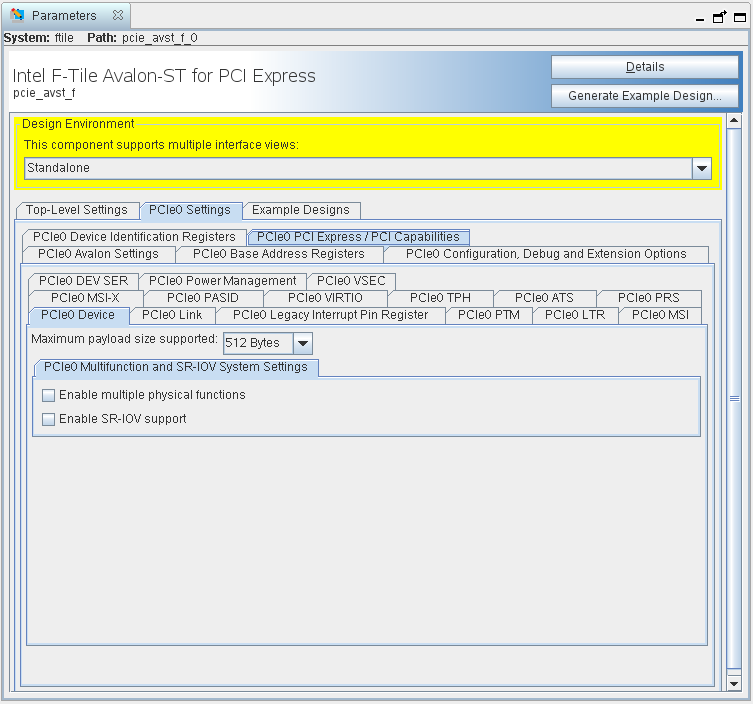

Figure 63. PCI Express / PCI Capabilities Parameters
