Partial Reconfiguration with the Intel® Arria® 10 HPS

PR Freeze Controller

The Intel® partial reconfiguration freeze controller, provided by the Qsys Pro tool, is shown below.

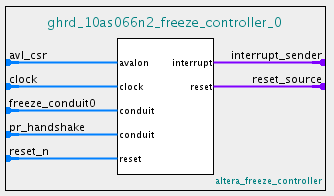

Figure 4. Partial Reconfiguration Freeze Controller

One freeze controller can control multiple freeze bridges.
