3.3.4.1. Assignment Editor

The Quartus® Prime Assignment Editor (Assignments > Assignment Editor) allows you to add device and placement constraints to a design. The Assignment Editor provides a spreadsheet-like interface for assigning all instance-specific settings and constraints.

The Quartus® Prime software dynamically validates changes that you make through the editor, and issues errors or warnings for invalid assignments.

The System tab of the Quartus® Prime message window acknowledges adding or changing assignments.

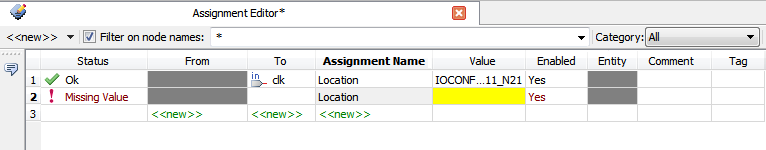

Figure 4.  Quartus® Prime Assignment Editor
