1. Introduction to MAX® 10 FPGA B610 Package Thermal Design Guidelines

Updated for:
Intel® Quartus® Prime Design Suite 25.1
The MAX® 10 FPGA B610 Package FPGA is a wire bond BGA package with a variable pitch ball grid array (VPBGA) within a 19x19mm footprint.

It is designed for reduced form factor while maintaining high input/output density, making it an ideal solution for modern, space-constrained applications.

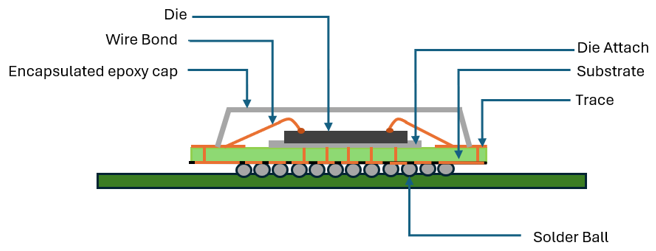

Figure 1.  MAX® 10 FPGA B610 Package

Section Content
Thermal Design Requirements
Definitions of Thermal and Power Terms Used in this Document
