4.2. QPA Outputs

QPA Outputs

The Quartus Power Analyzer (QPA) provides the following information:

  • Junction temperature: TJ
  • Static and total package power
Figure 5. QPA Output with Junction Temperature

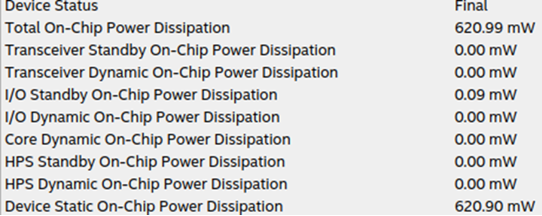

Figure 6. QPA Output with Package Powers
