6.6.4.5.2. Tx Path
This tab allows you to monitor the transmitter settings for the channel selected.
Group | Parameters | Values | Descriptions |
---|---|---|---|
Tx Status | Tx Electrical Idle | True False |
Indicates if TX is in electrical idle. True: indicates TX is in electrical idle. False: indicates TX is out of electrical idle. |
Tx PLL Lock | Green Red |
Indicates if TX PLL is locked.
Note: The status of the Tx PLL Lock may not be reflected properly by the Debug Toolkit in the Intel® Quartus® Prime software version 22.4. The fix for this problem is planned for a future release of the Debug Toolkit.
|
|
Tx Equalization | Tx Equalization Status | Not attempted Completed Unsuccessful |
Indicates transmitter equalization status. The TX local and remote parameters are valid only when the value of the Equalization status is returned as completed, indicating equalization has completed successfully. |
Tx Local Preset | TBD | TBD | |
Local Preshoot Coefficient | Depends on the coefficient requested by the link partner. | Indicates transmitter driver output pre-emphasis (pre-cursor coefficient value). | |
Local Main Coefficient | Indicates transmitter driver output pre-emphasis (main cursor coefficient value). | ||
Local Post Coefficient | Indicates transmitter driver output pre-emphasis (post-cursor coefficient value). | ||
Remote Preshoot Coefficient | Depends on the transmitter driver output of the link partner. | Indicates link partner's transmitter driver's output pre-cursor coefficient value | |
Remote Main Coefficient | Indicates link partner's transmitter driver's output main coefficient value | ||
Remote Post Coefficient | Indicates link partner's transmitter driver's output post-cursor coefficient value | ||
Remote Full Swing (fs) | Depends on the device capability of the link partner. | Indicates the full swing value used by the link partner during the Equalization phase of link training. | |
Remote Low Frequency (lf) | Indicates the low frequency value used by the link partner during the Equalization phase of link training. |

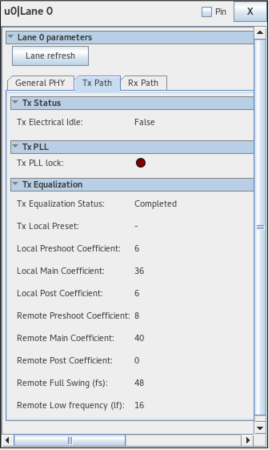

Figure 68. Tx Path
