8.2.4.4. Eye Viewer

Note: The eye viewer is not yet functional. This feature may be updated in a future release of the Intel® Quartus® Prime Pro Edition software.

The F-Tile Debug Toolkit supports the Eye Viewer tool that allows you to measure the eye height margin for each channel.

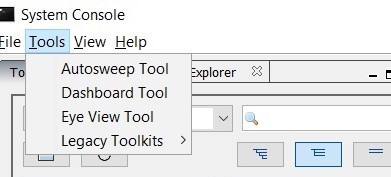

  1. In the System Console Tools menu option, click on Eye View Tool.
    Figure 81. Opening the Eye Viewer

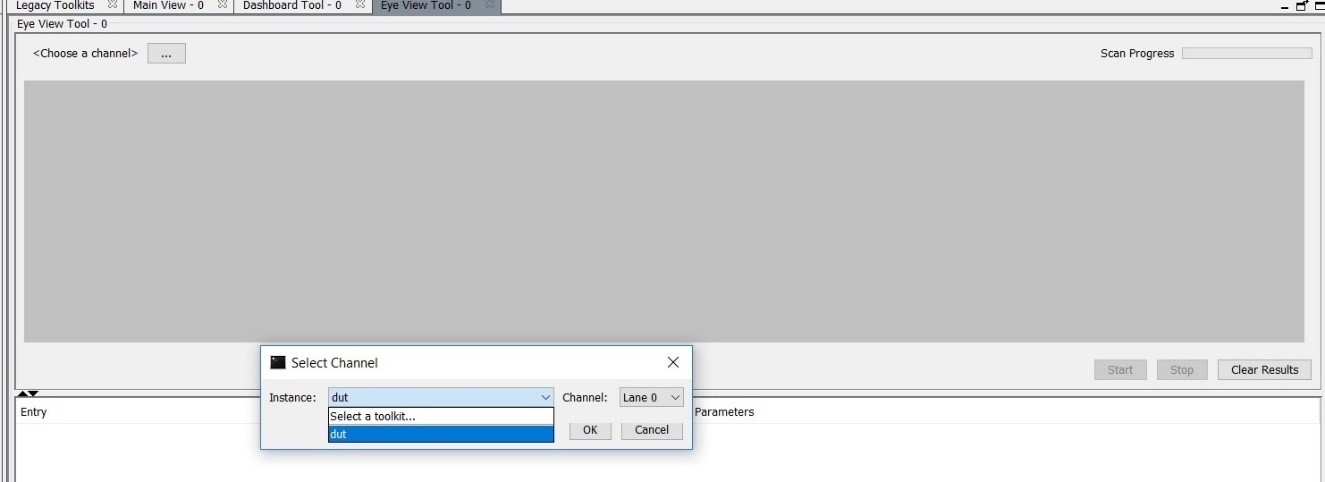

  2. This will open a new tab Eye View Tool next to the Main View tab. Choose the instance and channel for which you want to run the eye view tests.
    Figure 82. Opening the Instance and Channel
  3. Once the eye margin measurement completes, the eye height results are displayed.
    Figure 83. Eye View Tool Messages
  4. Once the eye plot is complete, the eye height, eye width and eye diagram are displayed.
Level Two Title
