22.5.2. [SOC] The hps_0 Platform Designer Layer (hps.qys)

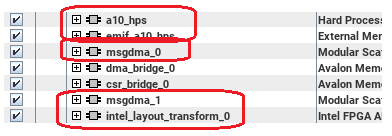

The hps_0 layer contains the HPS, an mSGDMA instance (msgdma_0) for the FPGA AI Suite runtime, and an mSGDMA instance (msgdma_1) for the streaming generation app (S2M variant only).

The example layout transform is also located here and can be replaced by your version.
