22.5.1. [SOC] The dla_0 Platform Designer Layer (dla.qsys)

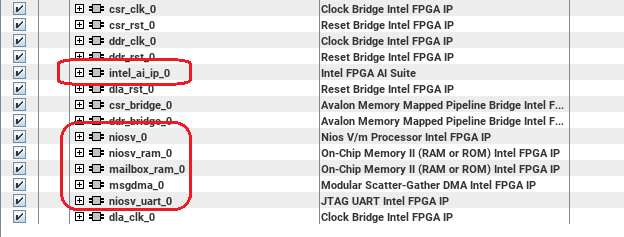

The dla_0 layer contains the FPGA AI Suite IP and the Nios® V subsystem to provide streaming capabilities.

When incorporating the FPGA AI Suite IP into a custom design, you can use the dla.qsys file as a starting point for the new design.
