22.3.5.3. [SOC] Layout Transform Configuration Options

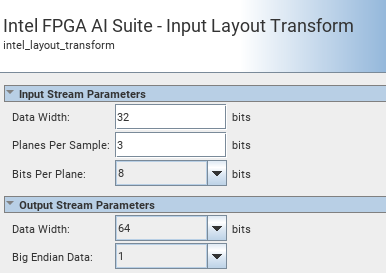

The example layout transform has a range of parameters to adjust to the data width based on the number of input planes being processed.

A maximum of 16 CSR mean and variance values are supported. The Planes per sample field sets this upper threshold.

All output data is in FP16 format which is the expected input format for the FPGA AI Suite.
