2.6.1. Test Procedure

Follow these steps to test the design example in hardware:

  1. In the system console, navigate to the hwtest folder and run the command: source main.tcl to select a JTAG master. By default, the first JTAG master on the JTAG chain is selected. To select the JTAG master for Intel Agilex® 7 devices, run this command: set_jtag <number of appropriate JTAG master>. Example: set_jtag 1.
  2. Run the following commands in the system console to start the serial loopback test:
    Table 7.  Command Parameters
    Parameter Description Example Usage
    chkphy_status <link num> Displays the clock frequencies and PHY lock status. % chkphy_status 0 # Check status of link 0
    chkmac_stats <link num> Displays the values in the MAC statistics counters. % chkmac_stats 0 # Checks mac statistics counter of link 0
    clear_all_stats <link num> Clears the IP core statistics counters. % clear_all_stats 0 # Clears statistics counter of link 0
    start_gen <link num> Starts the packet generator. % start_gen 0 # Begin packet generation on link 0
    stop_gen <link num> Stops the packet generator. % stop_gen 0 # Stop packet generation on link 0
    loop_on <link num> Turns on internal serial loopback. % loop_on 0 # Turn on internal loopback on link 0
    loop_off <link num> Turns off internal serial loopback. % loop_off 0 # Turn off internal loopback on link 0
    reg_read <addr> Returns the IP core register value at <addr>. % reg_read 0x402 # Read IP CSR register at address 402 of link 0
    reg_write <addr> <data> Writes <data> to the IP core register at address <addr>. % reg_write 0x401 0x1 # Write 0x1 to IP CSR scratch register at address 401 of link 0
    1. Type loop_on <link num> to turn on the internal serial loopback mode.
    2. Type chkphy_status <link num> to check the status of the PHY. The TXCLK, RXCLK, and RX status should have the same values shown below for a stable link:
      Link: 0   Addr: 100
       RX PHY Register Access: Checking Clock Frequencies (KHz)

          TXCLK       :39062 (KHZ)
          RXCLK       :39063 (KHz)

      Link: 0   Addr: 100
      RX PHY Status Polling

      Rx Frame Error            0x00000000

      Tx PLL Lock Status        0x00000001

      Rx Frequency Lock Status  0x00000001

      RX PCS Ready              0x1

      TX Lanes Stable           0x1

      Deskewed Status           0x0

      Link Fault Status         0x00000000



    3. Type clear_all_stats <link num> to clear TX and RX statistics registers.
    4. Type start_gen <link num> to begin packet generation.
    5. Type stop_gen <link num> to stop packet generation.
    6. Type chkmac_stats <link num> to read the TX and RX statistics counters. Make sure that:
      1. The transmitted packet frames match the received packet frames.
      2. No error frames are received.
    7. Type loop_off <link num> to turn off the internal serial loopback.

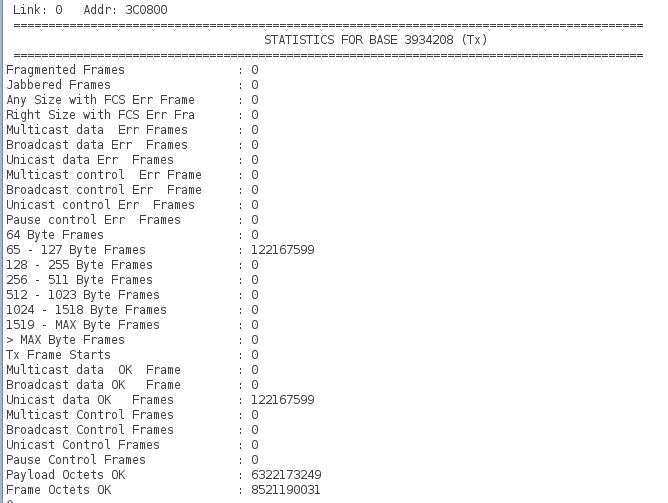

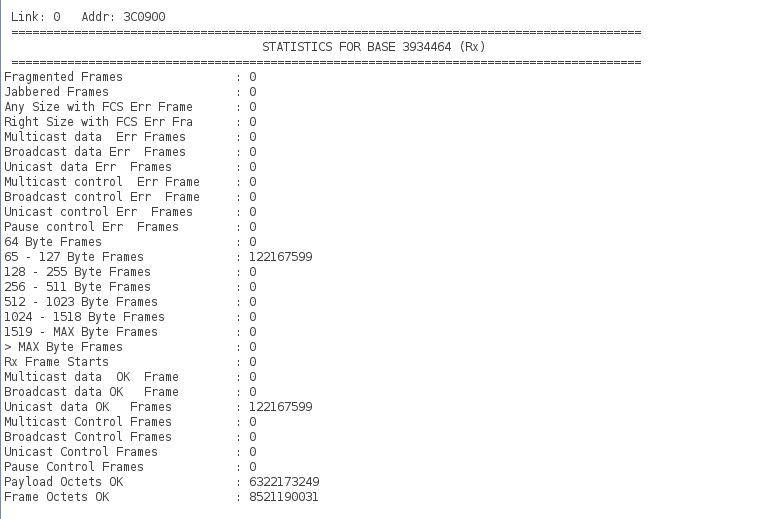

Figure 7. Sample Test Output—TX and RX Statistics Counters
