4.1. Importing Nios® V Processor Project

Note: To generate the Nios® V processor BSP or application project, refer to the AN 985: Nios® V Processor Tutorial.

To import Nios® V processor BSP and application project to RiscFree* IDE, follow these steps:

  1. Click File > Import Nios V project.
  2. In the Import Nios V CMake Project window, browse and select the location of the Nios® V processor BSP or application project.
  3. Click Finish. The CMake driven application or BSP project is added to the Project Explorer.

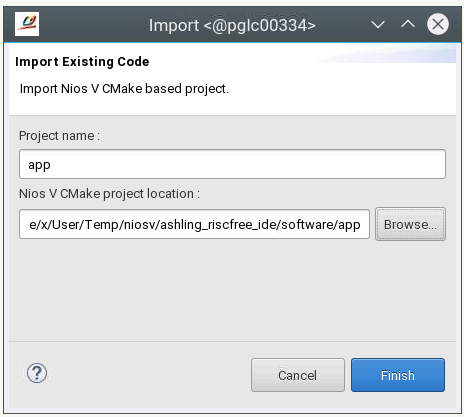

    Figure 3. Importing Nios® V Processor Sample Project
