6.6.4.5.3. Rx Path

This tab allows you to monitor the receiver settings for the channel selected.

Table 115.  Rx Path Parameters
Group Parameters Values Descriptions
Rx Status Rx Polarity

No polarity inversion

Polarity inversion

 Indicates RX polarity inversion for the selected lane.
Rx Electrical Idle

True

False

 Indicates if RX is in electrical idle.
Receiver Detected

True

False

 Indicates if far end RX is detected.
Rx CDR CDR Lock

True

False

 Indicates the CDR lock state.
CDR Mode

Locked to Reference (LTR)

Locked to Data (LTD)

 Indicates the CDR mode.

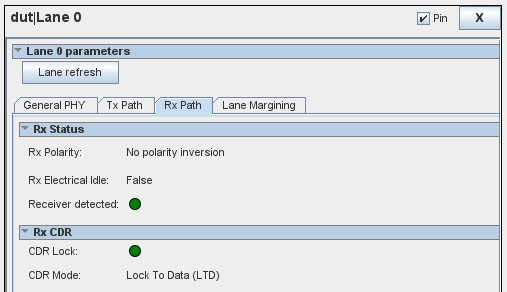

Figure 73. Rx Path
