2.5.1. Test Cases

You can run any of the following tests from the System Console.

Table 5.  Hardware Test Cases
Test Case Command Description
FMC loopback source gen_conf.tcl

The generator generates and sends about 100 000 packets. Wait 30 seconds for it to complete its tasks.
source monitor_conf.tcl source show_stats.tcl
source show_stats.tcl This script displays the values of the statistics counters.
Avalon® streaming interface loopback source loopback_conf.tcl This command enables the Avalon® streaming interface loopback. This test is used with an external tester such as Spirent tester.

After the test is completed, observe the output displayed in the System Console.

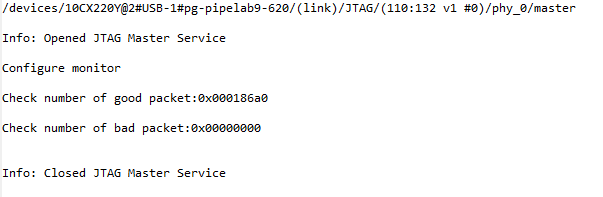

Figure 8. Sample Test Output—Ethernet Packet Monitor

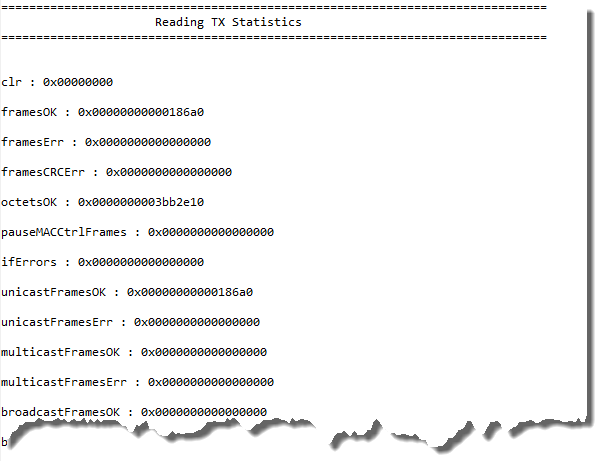

Figure 9. Sample Test Output—Statistics Counters
