8.2. 1D LUT IP Parameters

The IP offers run-time and compile-time parameters.
Parameter Values Description
Video Data Format
Lite mode On The IP only supports lite mode
Input bits per color sample 8 to 16 Select the number of input bits per color sample.
Output bits per color sample 8 to 16 Select the number of output bits per color sample.
Number of color planes 1 to 4 Number of color planes processed per pixel.
Number of pixels in parallel 1 to 8 Select the number of pixels in parallel.
Maximum Frame Size
Maximum field height 1k, 2k, 4k, 8k, 16k Specify the maximum height of incoming frames
Maximum field width 2k, 4k, 8k, 16k Specify the maximum width of incoming frames
Control Parameters
Equidistant LUT Entries On or off Turn on to distribute LUT entries equally across the dynamic range. When off, the IP divides the LUT into segments. When on, the segments at the lower end of the dynamic range are denser. The ones at the upper end are sparser.
Maximum number of bits to address all LUT entries 8 to 12 Maximum number of LUT entries in bits. This value cannot exceed the bits per color sample value.
Number of bits to address LUT segments Derived

When Equidistant LUT Entries is on, the IP divides the LUT into segments.

The IP derives this parameter from input bits per color sample, maximum number of LUT address bits, and sparsity bit parameters. Only visible when Equidistant LUT Entries is off.

Sparsity progression across segments (in bits) 1 to 2 The sparsity progression factor between neighboring LUT segments in number of address bits. Only available when Equidistant LUT Entries is off.
Reverse LUT On or off Allows you to use the LUT entries in reverse order.
General
Pipeline ready signal On or off Turn on to add extra pipeline registers to the AXI4-S tready signals
Separate clock for control interface On or off Turn on for a separate clock for the control agent interface
Debug features On or off Turn on to read back frame information registers and debugging information registers via the control agent interface.

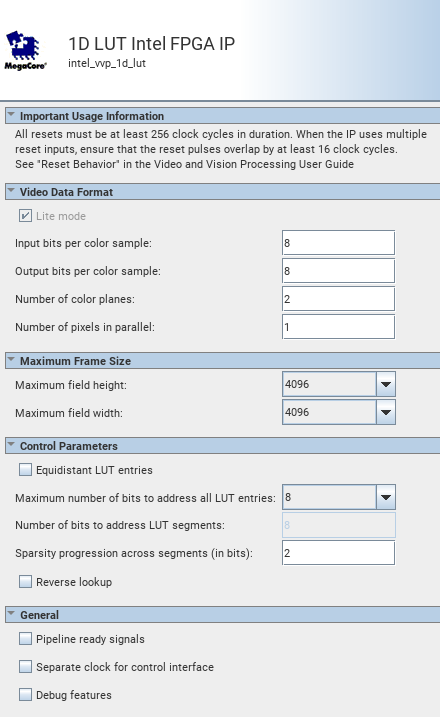

Figure 13. 1D LUT IP GUI
