2.3. Intel® FPGA Download Cable II Plug Connection

The 10-pin female plug connects to a 10-pin male header on the circuit board containing the target device.

Figure 3. Intel FPGA Download Cable II 10-Pin Female Plug Dimensions - Inches & Millimeters

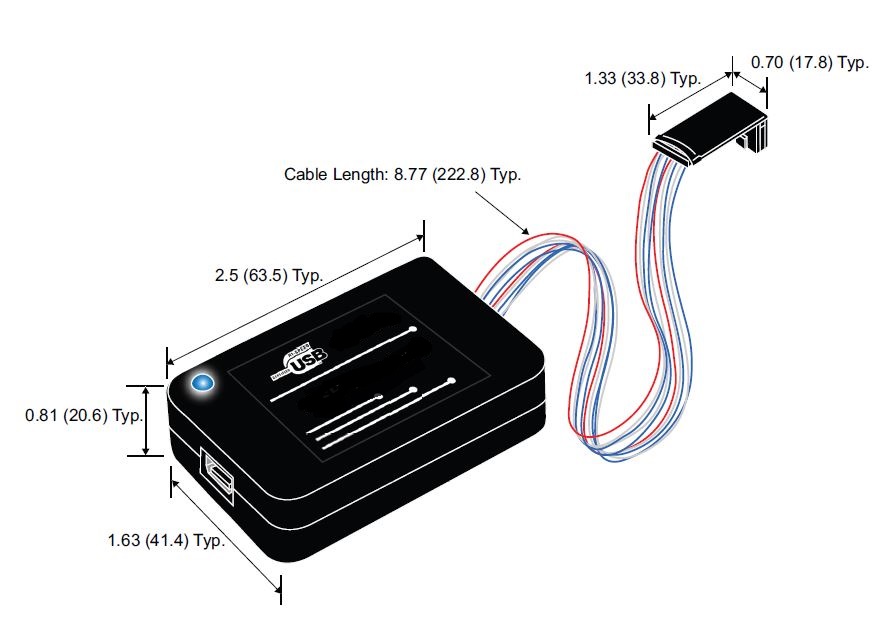

Figure 4. Intel FPGA Download Cable II Dimension - Inches and Millimeters
